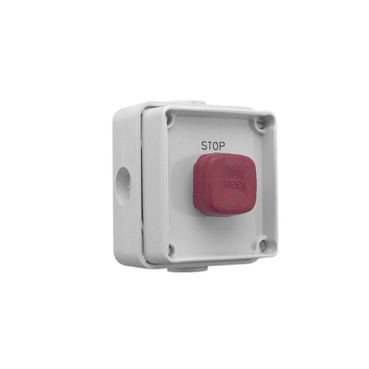

Weathershield Surface Switch 1 Gang, 440V, 10A, Mark STOP | Resistant Grey
Item Number: WS226PBS-RG
Datasheet
Close
Specifications
Design
Range of product
Weathershield
Product or component type
push-button
Product brand
Clipsal
Physical
Device presentation
basic element with full cover plate
Actuator
push-button
Local signalling
without light indicator
Fixing mode
by screws
[ue] rated operational voltage
440 V AC
Inrush current
10 A
Marking
STOP
Mounting position
vertical
Ip degree of protection
IP66
Material
Material
plastic
Others
Package 1 bare product quantity
1
Contacts type and composition
1 NC for contacts open
Marking location
marking on surface
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.8 cm
Package 1 width
9 cm
Package 1 length
8.8 cm
Package 1 weight
0.199 kg
