Standard Series Socket Outlet White Electric

Item Number: 25D-WE

White Electric 1 PCE 1

Where To Buy

Datasheet

For 25D-WE

Download

Barcode

Qty	EAN	Colour
1	9311554049874	White Electric
100	19311554104129	White Electric
		-

Barcode

Qty	UoM	EAN	Colour
1		9311554049874	WE
100		19311554104129	WE

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

Number of power socket outlets

Actuator

switch
rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

16 mm

Length

115 mm

Width

73 mm

Fixing center

84 mm

Standards

AS/NZS 3100
AS/NZS 3112
AS/NZS 3133
AS/NZS 3000:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2.5 cm

Package 1 width

7.2 cm

Package 1 length

11.6 cm

Package 1 weight

142 g

Green premium status for reporting

Green Premium product

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

17.5965700789

Global warming ; total life cycle

18 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

All
Product Brochures
Technical Data Catalogues
Specification Guide
Certificates (MSDS)

ZIP

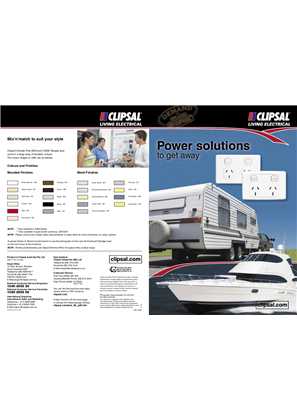

Power Solutions to get away - 12926

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 726.5 KB

ZIP

Standard Series Technical Catalogue

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 5.3 MB

ZIP

Technical Specifications - Socket Outlets - Standard Range

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 159.1 KB

ZIP

Technical Specifications - Switches - Standard Range

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 188.6 KB

ZIP

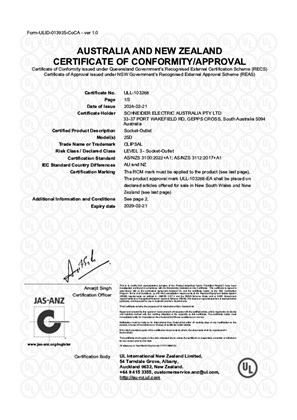

Clipsal, 25D socket outlets, Certificate, RCM, ULNZ LTD

VERSION

1.0

DATE

27 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 341.3 KB

Frequently Asked Questions

hide show

What is the replacement for the NS160N Breaker with TM125D?

The replacement for the NS160N Breaker with TM125D is NSX160F Breaker with same trip unit part number "LV430631"

http://www.schneider-electric.com.au/en/search/LV430631

What is the replacement model for a NS100N 3 Pole molded case circuit breaker?

The replacement model for a NS100N 3 Pole is the NSX100F 3P range.

NSX100F: (36kA at 415V)
Complete/3 Pole Front Connected

Description	Type	Trip Unit	Rating	Part Number
NSX100F (36kA) Distribution Protection	Standard thermal-magnetic trip unit TM-D	TM16D	11-16A	LV429637
		TM25D	17-25A	LV429636
		TM32D	22-32A	LV429635
		TM40D	28-40A	LV429634
		TM50D	35-50A	LV429633
		TM63D	44-63A	LV429632
		TM80D	56-80A	LV429631
		TM100D	70-100A	LV429630
	Electronic Trip unit Micrologic 2.2 (LSol)	40A	18-40A	LV429772
	Electronic Trip unit Micrologic 2.2 (LSol)	100A	40-100	LV429770
	Electronic Trip unit Micrologic 5.2A (LSI) (ammeter)	40A	18-40A	LV429882
	Electronic Trip unit Micrologic 5.2A (LSI) (ammeter)	100A	40-100	LV429880
NSX100F (36kA) Motor Protection	Nagnetic only trip Unit MA	MA2.5	2.5A, 0.75kW	LV429745
		MA6.3	6.3A, 2.2kW	LV429744
		MA12.5	12.5A, 5.5kW	LV429743
		MA25	25A, 11kW	LV429742
		MA50	50A, 22kW	LV429741
		MA100	100A, 45kW	LV429740
	Electronic Trip unit Micrologic 2.2 (LSol)	25A	12-25A, 11kW	LV429828
		50A	25-50A, 22kW	LV429827
		100A	50- 100A, 45kW	LV429825

There is also a 4P model as well.
