Standard Series, Socket Outlet Mechanism, Auto Switched, Single, 10A, Double Pole White Electric
Item Number: 10MDLB-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
socket-outlet
Product brand
Clipsal
Sustainable offer status
Green Premium product
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
33 mm
Length
60 mm
Width
42 mm
Fixing center
50 mm
Number of poles
2
Standards
AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cover type
complete housing
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.3 cm
Package 1 width
4.2 cm
Package 1 length
6 cm
Package 1 weight
54 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-

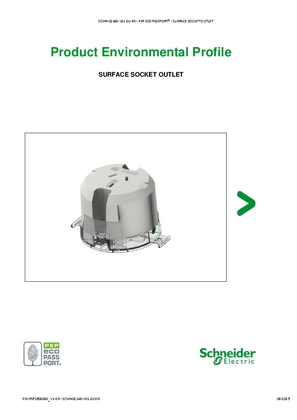

Environmental Disclosure
-
Specification Guide
-

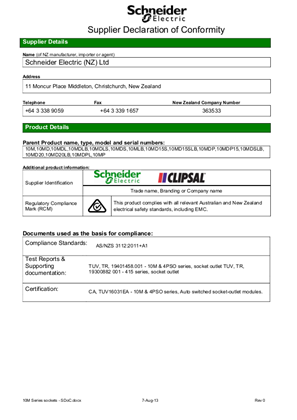

Declaration of Conformity
-
