Saturn Series, Switch Mechanisms Push Button, 250V, 16AX/20A, 1 Way 2 Way

Item Number: 60PB

1 PCE 1

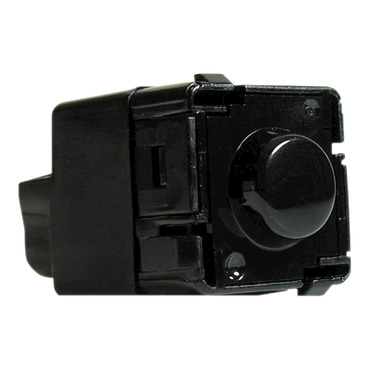

Switch mechanism with push-button. One-way or two-way switching is available. 60 Series mechanism. Suitable for Clipsal Saturn. Rated current: 20A / 16 AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width23.5 mm

Height23.5 mm

Embedding depth31.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	EAN	Colour
1	9311554682309	-
10	9311554682316	-
500	19311554682306	-

Specifications

Design

Range of product

Saturn Series 4000

Product or component type

push-button

Product brand

Clipsal

Colour tint

black

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Actuator

push-button

Local signalling

without light indicator

Fixing mode

by screws

[ue] rated operational voltage

250 V AC

Inrush current

20 A

Height

23.5 mm

Depth

40 mm

Embedding depth

31.6 mm

Width

23.5 mm

Mounting position

vertical

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

plastic

Others

Package 1 bare product quantity

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3 cm

Package 1 width

3 cm

Package 1 length

5.5 cm

Package 1 weight

22 g

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 227.3 KB

Frequently Asked Questions

hide show

Is there an intermediate switch mechanism for the Zen series?

Yes, there is an intermediate switch mechanism for Saturn Zen. The part number is 60PBI.

Some of the key features are:

No LED Indication
Intermediate Push-button
10AX load

For further information please visit http://www.clipsal.com/Trade/Products/ProductDetail?catno=60PBI

Can I get an intermediate Saturn series mech with an LED?

No, these are not saturn PBL Blue LED intermediate switch available, but you can create one using a 2 way standard 60PBL 2 way push switches with LED's switch using a PDL600RM relay, as per the attached wiring diagram.
