Actassi S-110 Connector RJ45 40 Mech Unshielded Cat6A ICONIC, 40 Mech, pk x 1

Home ProductsSwitches and SocketsPro SeriesS-110 Connector

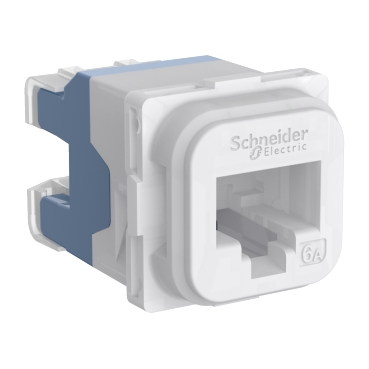

Actassi S-110 Connector RJ45 40 Mech Unshielded Cat6A ICONIC, 40 Mech, pk x 1 | Translucent

Item Number: VDIB1778XUTN

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

RJ45 network socket

Colour tint

stuffer cap: transparent (ABS + PC)|IDC cover: blue (ABS + PC)|connector housing: translucent (ABS + PC)

Colour code

568 A/B

Product compatibility

RJ45 plug

Physical

Device presentation

integrated shutter|two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Insulation resistance

initial insulation resistance: >= 500 MOhm at 100 V DC

Awg gauge

AWG 23...AWG 24

Mechanical durability

750 cycles

Coupling attenuation

>= 35 dB at 30-100 MHz|>= 75 - 20 x log(f) dB at 100-1000 MHz

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Pulling force

50 N during 60 s

Transverse conversion loss

>= 50 dB|>= 68 - 20 x log(f) dB at 1-500000 kHz

Tool type

punch down tool|quick termination tool

Cable outer diameter

0.9...1.1 mm

Cable shielding type

UTP

Communication network category

6<sub>A</sub>

Communication network type

10GBASE-T

Communication port protocol

VoIP (Voice IP)|PoE+ (Power over Ethernet)

Transmission frequency

0...500 MHz

Type of footprint

S-110 40 mech

Height

22 mm

Length

36 mm

Width

16 mm

Ambient air temperature for operation

-40...70 °C

Climatic withstand

40/070/21 (21 days)

Product certifications

RCM

Standards

AS/NZS 3080|AS/CA S008|ISO/IEC 11801|IEC 60603-7-41|ANSI/TIA-568-C.2.1

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Others

Package 1 bare product quantity

1

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

2.3 cm

Package 1 length

1 cm

Package 1 weight

10 g
