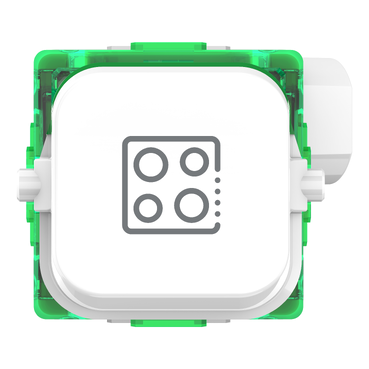

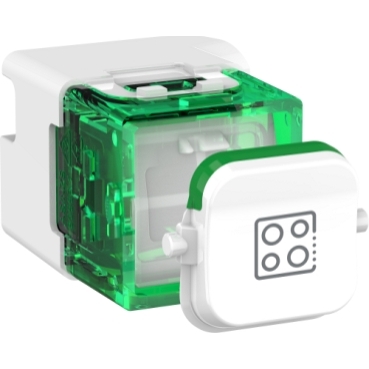

Pro Series Module Switch Extra Vivid White
Item Number: PDLP380M32HOB-XW
Switch mechanism. One-way switching. Rocker marked HOB is included. 300 Series mechanism. PDL Pro Series. Colour: Extra White Rated current: 32A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
Range
Pro Series
Product or component type
switch
Surface treatment
untreated
Surface finish
glossy
Physical
Quantity per set
set of 10
Device presentation
mechanism with central plate
[ue] rated operational voltage
250 V
Rated current
32 A
Clamping connection capacity
- 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s)
- 3 x 2.5 mm² for stranded cable(s)
- 1 x 4 mm² for stranded cable(s)
Fixing mode
by clips
Marking
hob
Width
23 mm
Height
23 mm
Depth
32 mm
Net weight
0.016 kg
Relative humidity
10...95 %
Ambient air temperature for operation
0...45 °C
Eu rohs directive
Under investigation
