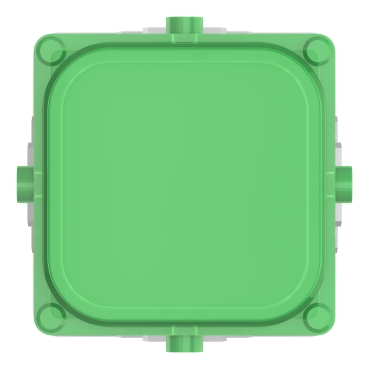

Pro Series Module LED Indicator 300M 24V, 300 Series, Green | Heritage Green
Item Number: PDL310ML24-GN
LED power indicator mechanism. It is a green LED. 300 Series mechanism. PDL Pro Series. Operating voltage 24V. Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
Range
Pro Series
Product or component type
indicator module
Surface treatment
untreated
Physical
Device presentation
mechanism with central plate
Type of packing
polybag
Device mounting
clip with locking bar
[ue] rated operational voltage
24 V
Local signalling
LED green for status
Height
23 mm
Width
23 mm
Depth
32 mm
Net weight
0.016 kg
Eu rohs directive
Under investigation
Environmental disclosure
ENVPEP1709004EN
Circularity profile
N/A
Material
Material
PC (polycarbonate): housing|PA66: housing
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.2 cm
Package 1 width
2.2 cm
Package 1 length
2.4 cm
Package 1 weight
16.98 g
Documents & downloads
hide showFilter items
-
All
-
Certificates (MSDS)
