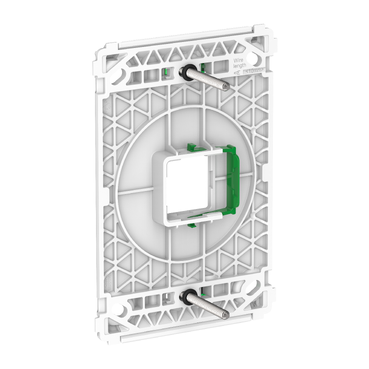

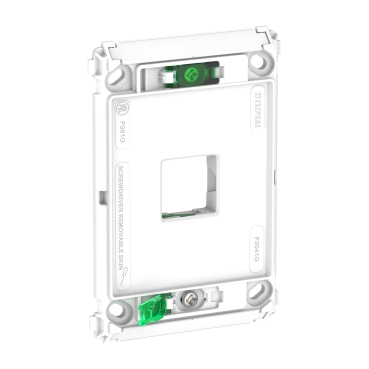

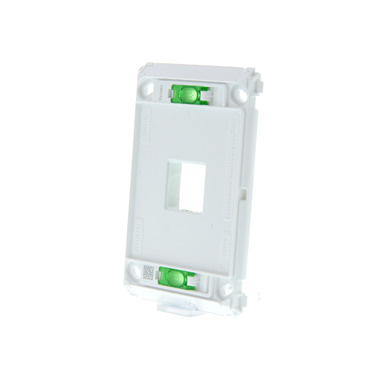

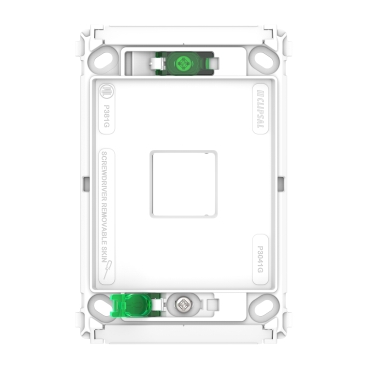

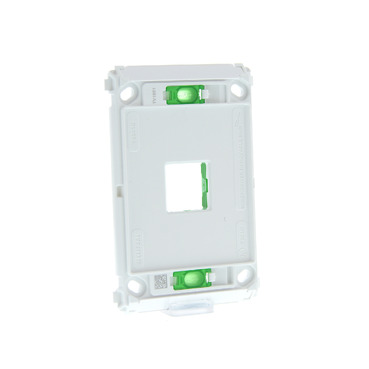

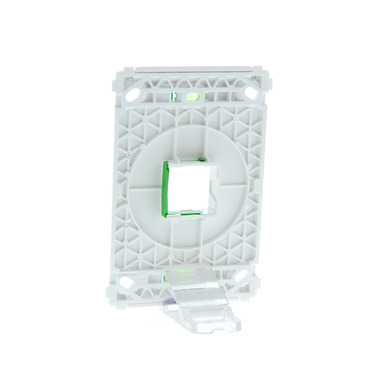

Pro Series Grid Plate Switch
Item Number: PDLP381G
Close
Switch grid. Suitable for 1-gang installations. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence.
Specifications
Design
Range
Pro Series
Product or component type
fixing frame
Market segment
- commercial
- buildings
Physical
Number of gangs
1 gang
Fixing mode
by screws
Range compatibility
Pro Series cover plate
Provided equipment
screws
Mounting support
wall
Depth
38 mm
Width
112 mm
Height
72 mm
Net weight
0.038 kg
Type of packing
polybag
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1607003EN
Circularity profile
N/A
Material
Material
- PC (polycarbonate)
- PP (polypropylene)
- ABS (acrylonitrile butadiene-styrene)
- POM (polyoxymethylene)
