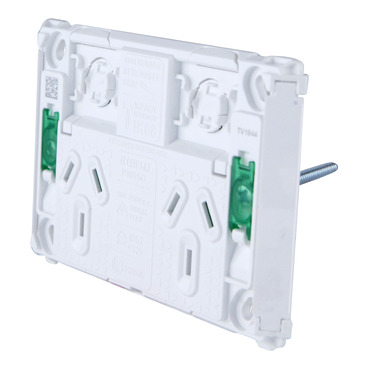

Pro Series Grid Double Switched Socket
Item Number: PDLP395G
Close
Socket outlet grid for horizontal installations. Twin switched socket grid. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence. Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
Range
Pro Series
Product or component type
switched socket
Surface treatment
untreated
Physical
Device presentation
mechanism with fixing frame
Installation direction
horizontal
Device mounting
flush
Number of rocker
2
[ue] rated operational voltage
230/240 V
Fixing mode
by screws
Clamping connection capacity
- 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
- 3 x 4 mm² for rigid or stranded cable(s)
Wire stripping length
16 mm
Net weight
0.078 kg
Ambient air temperature for operation
0...45 °C
Height
72 mm
Width
112 mm
Depth
27 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Environmental disclosure
ENVPEP2309004EN
Circularity profile
N/A
Quantity per set
set of 10
