Pro Series Dolly Rocker White LED 250V

Pro Series Dolly Rocker White LED 250V | Extra Vivid White

Item Number: PDLP300ALEDB-XW

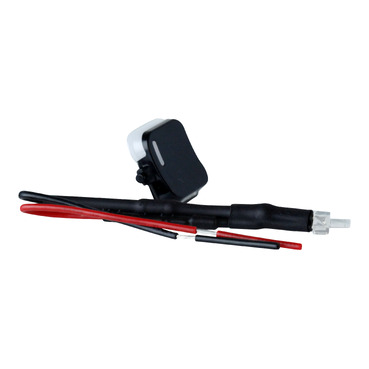

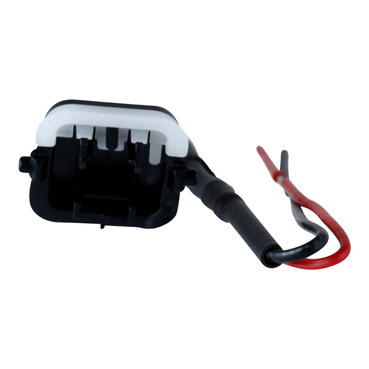

LED module with bright white lighting. Rocker in Black is included. PDL Pro Series. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

LED|rocker

Colour tint

black (BK)

Product destination

switch

Surface finish

matt

Surface treatment

untreated

Physical

Device presentation

basic element

Type of packing

polybag

Quantity per set

10

Sale per indivisible quantity

10

Load type

240 V AC

Device mounting

flush

Control type

rocker

Number of rocker

1

Actuator

rocker|dolly

Range compatibility

Pro Series|Iconic

Fixing mode

clip-in

Rated current

0.002 mA at 250 V AC 50 Hz

Connections - terminals

flying leads

Local signalling

white indicator white for indicator

Height

23 mm

Width

23 mm

Depth

32 mm

Net weight

0.01 kg

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

0...45 °C

Relative humidity

10...95 %

Environmental characteristic

UV resistant indoor use

Eu rohs directive

Under investigation

Material

Material

ABS (acrylonitrile butadiene-styrene): rocker

Others

Package 1 bare product quantity

1

Light source

LED 60 mW

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.9 cm

Package 1 width

1.8 cm

Package 1 length

2.3 cm

Package 1 weight

3.78 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
