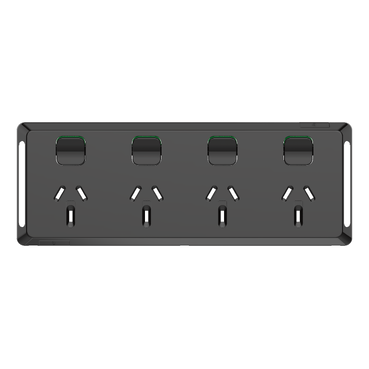

Pro Series Cover Plate Quad Swiched Socket Black
Item Number: PDLP395H4C-BK
Close
Decorative clip-on skin. For quad switched sockets. Suitable for horizontal installations. PDL Pro Series. Colour: Black Used with 10A rated sockets
Specifications
Design
Range
Pro Series
Product or component type
cover frame
Colour tint
black (BK)
Product destination
switched socket
Surface finish
glossy
Physical
Type of packing
polybag
Range compatibility
Pro Series switched socket
Number of rocker
4
Number of power socket outlets
4
[in] rated current
10 A
Installation direction
horizontal
Fixing mode
clip-on
Height
78 mm
Width
212 mm
Depth
9 mm
Net weight
0.032 kg
Ambient air temperature for operation
0...45 °C
Relative humidity
10...95 %
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Environmental disclosure
ENVPEP2309004EN
Circularity profile
N/A
Material
Material
- PC (polycarbonate): window
- ABS (acrylonitrile butadiene-styrene): skin
