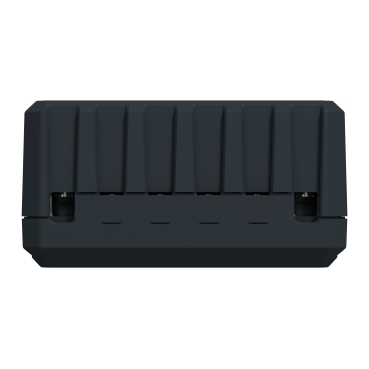

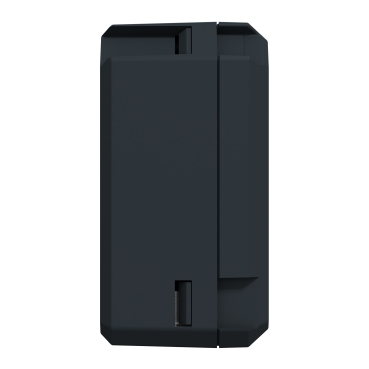

Iconic Wiser Micro Module Smart Switch 10 AX, 240 V

Item Number: PDL5011WSZ

1 PCE 0

The Wiser Micro Module Smart Switch combines smart switch functionality with bell press push-button switches. It transforms a conventional push-button switch into a connected device you can control from the switch or through the Wiser by SE app or voice command. With voltage free relay contacts it is suitabel for a wide range of applications.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		9416175268694	-
40		19416175268691	-

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected switch

Colour tint

grey

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Device presentation

module

Load type

[ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

over temperature protection|thermal protection

Control type

push-button|by mobile application

Communication network type

wireless (2.4-2.4 GHz), 2.5 mW at < 50 m

Wiring configuration

3-wire

Mounting support

wall|installation box

Type of installation

indoor installation

Relative humidity

5...90 % non-condensing

Standards

AS/NZS 60669.2.1 safety|AS/NZS 60669.2.1 EMC|AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1706003EN

Circularity profile

ENVEOLI1706003EN

Material

Material

plastic

Others

Package 1 bare product quantity

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Technology type

electronic

Software name

Wiser App

Technology type

Zigbee

Main colour tint

grey

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.2 cm

Package 1 width

7.5 cm

Package 1 length

7.5 cm

Package 1 weight

62.0 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

2.96 kg

Unit type of package 3

P06

Number of units in package 3

640

Package 3 height

75 cm

Package 3 width

60 cm

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 223.8 KB

Frequently Asked Questions

hide show

I want to put in two-way switching but can’t run the cables between the mechanisms. Can I achieve wireless two-way switching with Wiser Zigbee?

This can be done with our 2AX, 10AX or Micro Module Switch along with the Hub. At one end you will need an Active, Neutral and Load wiring. At the other end you will need Active and Neutral only. You can then create Automations to achieve the 2-way.
You need to create two automations for a 2-way:

when switch A and switch B are ON, turn switch A and switch B ON
when switch A and switch B are OFF, turn switch A and switch B OFF

This can be expanded to 3-way, 4-way etc by simply adding the other switches into the respective ON and OFF automations.

2 way ON Automation 2 way OFF Automation

Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?

Firmware for the Wiser devices is updated via the Wiser by SE app and is done via the mode of connection. If your device is connected in Bluetooth in Wiser by SE, you will have access to Bluetooth firmware updates and if your Wiser device is connected in Zigbee via the Wiser Hub to Wiser by SE, you will have access to Zigbee firmware updates.
Without the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.

What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W
