Iconic Wiser Micro Module Smart Dimmer 200 W Max, 240 V

Home ProductsSwitches and SocketsPDL IconicWiser Micro Module Smart Dimmer

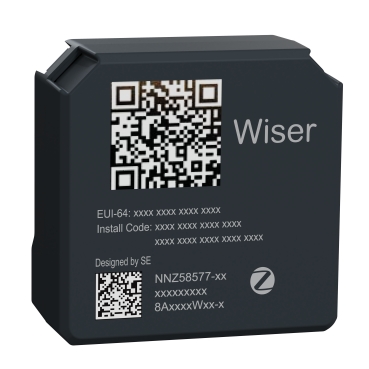

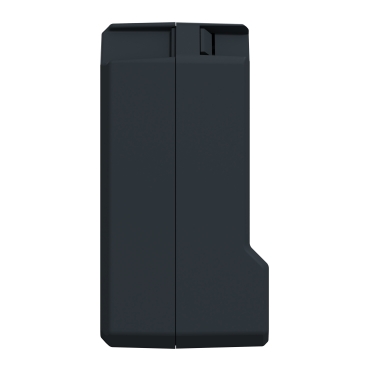

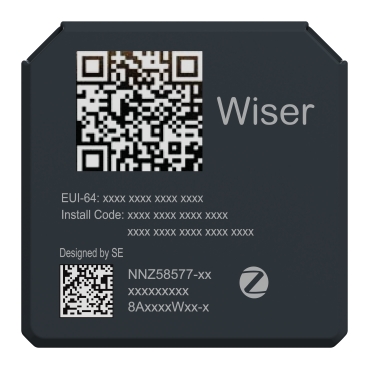

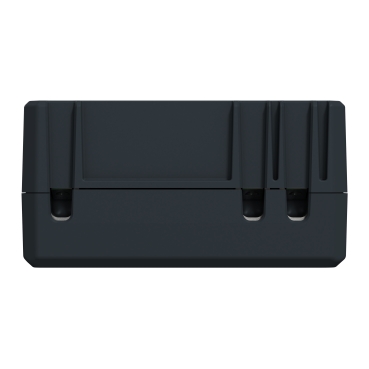

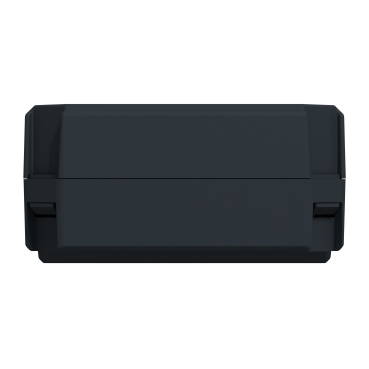

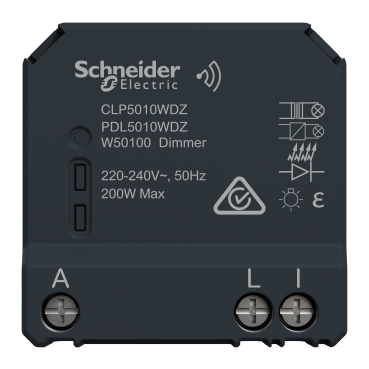

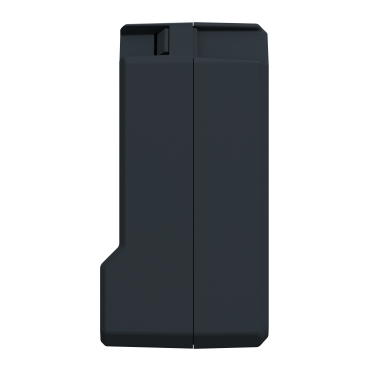

Iconic Wiser Micro Module Smart Dimmer

Item Number: PDL5010WDZ

The Wiser Micro Module Smart Dimmer combines smart dimmer functionality with bell press push-button switches. It transforms a conventional push-button switch into a connected device you can control from the switch or through the Wiser by SE app.

Where To Buy

Datasheet

PDF datasheet

For PDL5010WDZ

Download

Barcode

Qty UoM EAN Colour
1 9416175268700 -
40 19416175268707 -

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected dimmer

Device application

light control

Colour tint

grey

Surface finish

matt

Physical

Device presentation

module

Dimmer type

universal

Load type

  • dimmable LED: 0...150 W
  • compact fluorescent lamp: 0...200 W
  • incandescent lamp: 0...200 W at 240 V
  • halogen lamp: 0...200 W at 240 V
  • LV halogen lamps: 0...200 W (electronic transformer)

[ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

  • overheating protection
  • short-circuit protection
  • overcurrent protection

Control type

  • push-button
  • by mobile application

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

Wiring configuration

2-wire

Mounting support

  • wall
  • installation box

Type of installation

indoor installation

Embedding depth

40 mm

Ip degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1705012

Circularity profile

ENVEOLI1705012

Material

Material

plastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

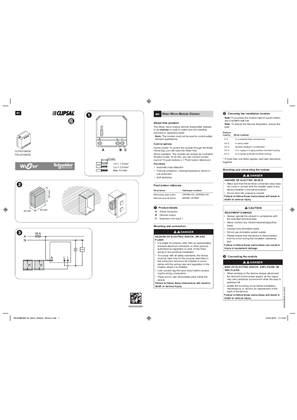

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • System User Guide

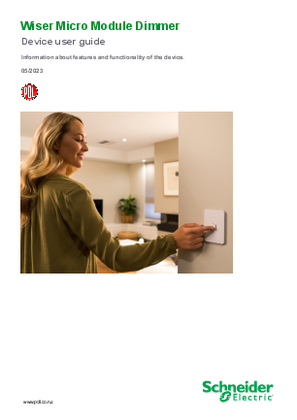

  • Operating Manuals

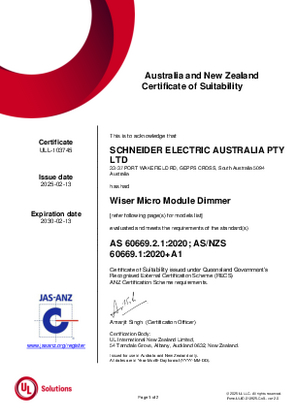

  • Certificates (MSDS)

  • Page 2  /  2

Frequently Asked Questions

hide show

Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?

Firmware for the Wiser devices is updated via the Wiser by SE app and is done via the mode of connection. If your device is connected in Bluetooth in Wiser by SE, you will have access to Bluetooth firmware updates and if your Wiser device is connected in Zigbee via the Wiser Hub to Wiser by SE, you will have access to Zigbee firmware updates.
Without the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.


What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W
