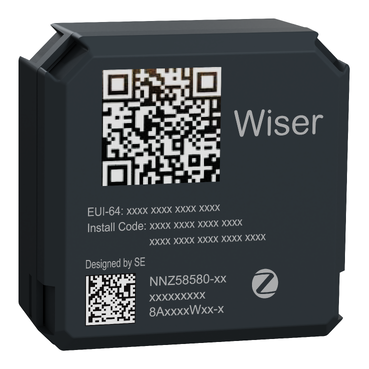

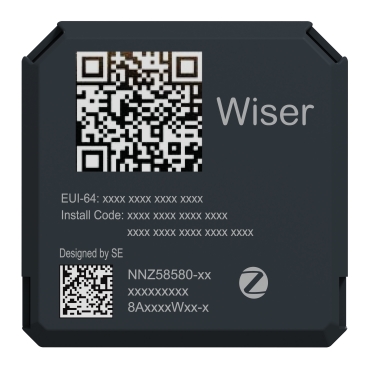

Iconic Wiser Micro Module Smart Blind Controller

Item Number: PDL5015WBZ

The Wiser Micro Module Smart Blind Controller provides smart control of 240V twin active blinds and shutter motors. . It transforms a conventional double push-button switch into a connected device you can control from the switch or through the Wiser by SE app.

Where To Buy

Datasheet

PDF datasheet

For PDL5015WBZ

Download

Product Dimensions

Width icon

Width43 mm

Height icon

Height43 mm

Embedding depth icon

Embedding depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9416175268717 -
40 19416175268714 -

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected shutter control

Device application

blind actuator

Colour tint

grey

Physical

Range compatibility

  • PDL Iconic push-button
  • Pro Series push-button
  • Saturn Series 4000 push-button
  • Impress Series 30 push-button

Device presentation

module

Load type

motor: 500 W at 230 V AC

[ue] rated operational voltage

220...240 V AC 50 Hz

Rated current

4 A

Protection type

circuit breaker 16 A

Control type

  • push-button
  • by mobile application

Communication network type

wireless Zigbee (2.4-2.4 GHz), 10 mW at < 50 m

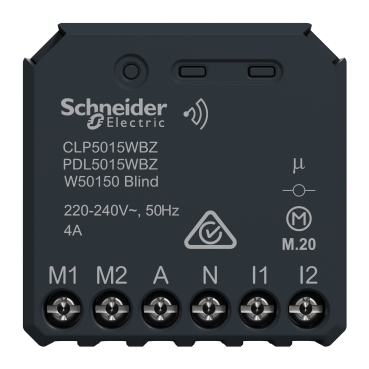

Wiring configuration

3 wires with neutral

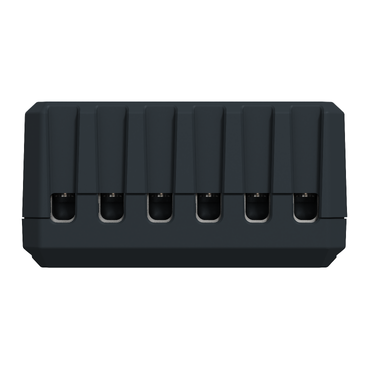

Connections - terminals

screw terminal

Clamping connection capacity

  • 1 x 1.5...2 x 2.5 mm² for solid cable(s)
  • 1 x 1.5...2 x 2.5 mm² for stranded cable(s)

Mounting support

  • installation box
  • wall

Type of installation

indoor installation

Ambient air temperature for operation

0...35 °C

Ip degree of protection

IP20

Relative humidity

5...90 % non-condensing

Embedding depth

70 mm

Depth

22 mm

Width

43 mm

Height

43 mm

Product certifications

Zigbee 3.0

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1706004EN

Circularity profile

ENVEOLI1706004EN
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • System User Guide

  • Operating Manuals

  • Certificates (MSDS)

  • Page 2  /  2
PDL, Wiser New Zealand, Consumer Brochure, 998-22076298
ZIP

PDL, Wiser New Zealand, Consumer Brochure, 998-22076298

VERSION

1.0

DATE

16 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 10.5 MB
WISER Catalogue New Zealand
ZIP

WISER Catalogue New Zealand

VERSION

3.0

DATE

09 Nov 2022

REVISION

3.0

DOWNLOAD (ZIP) 18.2 MB

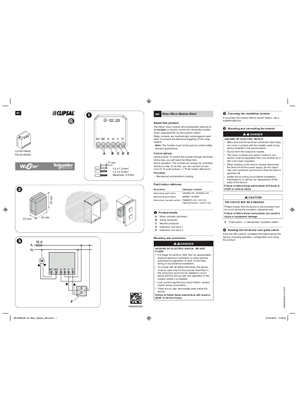

Wiser Micro Module Blind - Instruction sheet
ZIP

Wiser Micro Module Blind - Instruction sheet

VERSION

3.0

DATE

01 Mar 2025

REVISION

3.0

DOWNLOAD (ZIP) 1007.9 KB

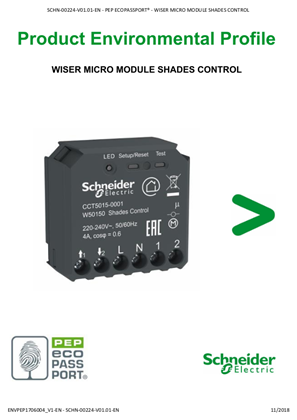

Wiser - MICRO MODULE SHADES CONTROL - Product Environmental Profile
ZIP

Wiser - MICRO MODULE SHADES CONTROL - Product Environmental Profile

VERSION

1.0

DATE

30 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 408.7 KB

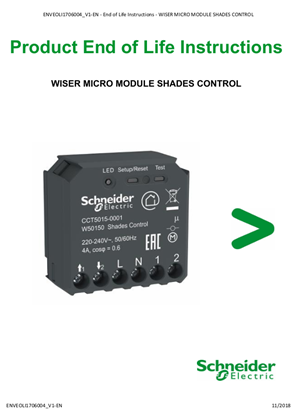

Wiser - Micro Module shades control - End of life manual
ZIP

Wiser - Micro Module shades control - End of life manual

VERSION

1.0

DATE

30 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 340.1 KB
Wiser - System user guide (Egypt)
ZIP

Wiser - System user guide (Egypt)

VERSION

2.2

DATE

29 Nov 2024

REVISION

2.2

DOWNLOAD (ZIP) 45.2 MB

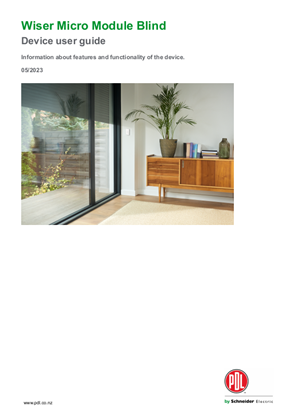

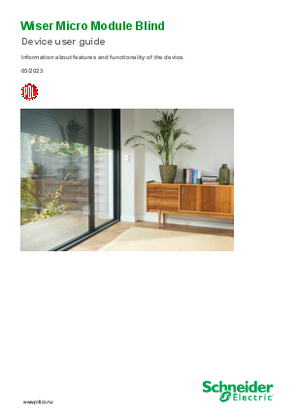

Wiser Micro Module Blind (PDL) - Device user guide
ZIP

Wiser Micro Module Blind (PDL) - Device user guide

VERSION

1.1

DATE

29 Nov 2024

REVISION

1.1

DOWNLOAD (ZIP) 13.1 MB
Wiser Pacific System User Guide PDL
ZIP

Wiser Pacific System User Guide PDL

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 10 MB

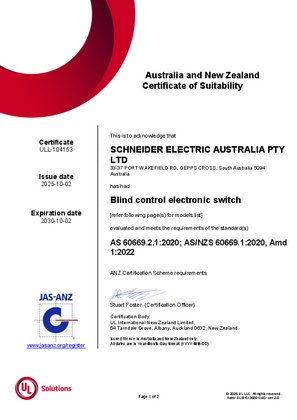

CS_GMA-508286-Rev00--CLP5015WBZ_PDL5015WBZ_W50150
