Iconic Wiser Connected Smart Dimmer Zigbee Default 300W 240V, 300 Series

Home ProductsSwitches and SocketsPDL IconicWiser Connected Smart Dimmer

Iconic Wiser Connected Smart Dimmer Vivid White

Item Number: PDL354PBDMBTZ-VW

The Iconic Connected Smart Dimmer is suitable for hard-wired multiway dimming. It can be controlled through ControlLink, the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser Hub for full home control and automation functions.

Where To Buy

Datasheet

PDF datasheet

For PDL354PBDMBTZ-VW

Download

Product Dimensions

Width icon

Width48 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9416175268762 Vivid White
48 19416175268769 Vivid White

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected dimmer

Device application

light control

Colour tint

vivid white (VW)

Surface finish

glossy

Physical

Device presentation

mechanism

Device mounting

flush

Fixing mode

clip-in

Dimmer type

universal

Load type

  • dimmable LED: 0...150 W
  • compact fluorescent lamp: 0...300 W
  • incandescent lamp: 0...300 W at 240 V
  • halogen lamp: 0...300 W at 240 V
  • LV halogen lamps: 0...300 W (electronic transformer)

[ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

  • overheating protection
  • short-circuit protection
  • overcurrent protection

Local signalling

LED

Control type

  • push-button
  • by mobile application
  • multi-way control via ControlLink

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

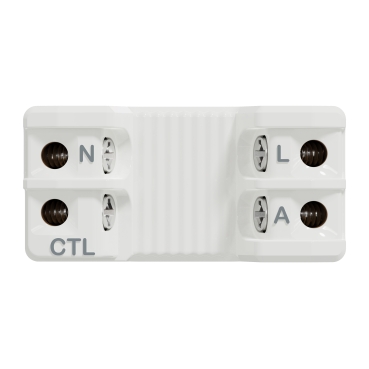

Wiring configuration

3-wire

Mounting support

grid

Fixing center

84 mm

Type of installation

indoor installation

Embedding depth

70 mm

Depth

56 mm

Width

48 mm

Height

22 mm

Ip degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2001003EN

Circularity profile

ENVEOLI2001003EN

Material

Material

plastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • System User Guide

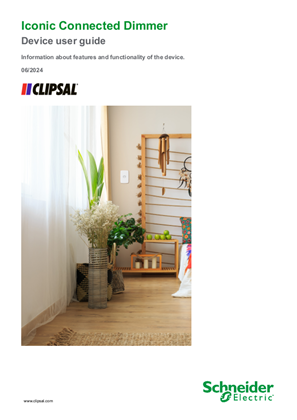

  • Operating Manuals

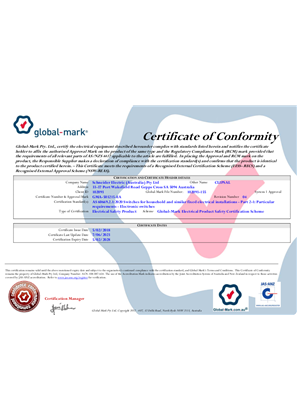

  • Certificates (MSDS)

  • Page 2  /  2

Frequently Asked Questions

hide show

Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?

Firmware for the Wiser devices is updated via the Wiser by SE app and is done via the mode of connection. If your device is connected in Bluetooth in Wiser by SE, you will have access to Bluetooth firmware updates and if your Wiser device is connected in Zigbee via the Wiser Hub to Wiser by SE, you will have access to Zigbee firmware updates.
Without the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.


What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W

How Can I Change a Wiser Mechanism from Zigbee to Bluetooth

To swap a Zigbee enabled switch to Bluetooth, press the switch 4 times and hold on the 4th press for 20+ seconds.
When holding the button in at the 10 second mark a slow flashing red led should be visible, releasing at this point would be a factory reset. Continue to hold until the red led starts flashing rapidly at the 20 second mark and then release.
This method of changing the mode of the mechanism will work Zigbee to Bluetooth and also Bluetooth to Zigbee.


I am getting a message in Wiser by SE ‘Network Unavailable. Please check your phones network settings’ what does this mean for my control of the products?

This message occurs when there is no mobile data connection or a WiFi connection to your device. When this occurs, you will still be able to connect to your Bluetooth switches/dimmers as these just require Bluetooth to be enabled on your device. It will prevent access/control of Zigbee devices and IP Cameras as this requires access to the cloud/internet. Via WiFi, without internet, you may still get control of the Zigbee switches/dimmers but not the IP Cameras.
