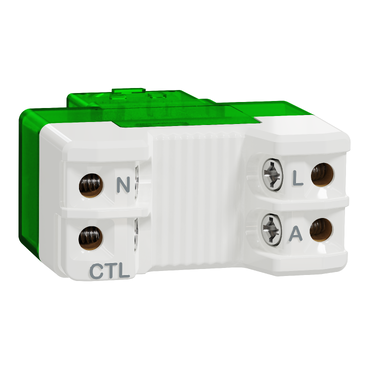

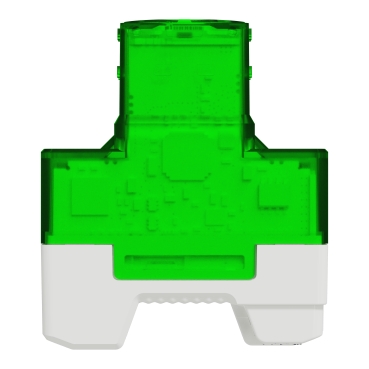

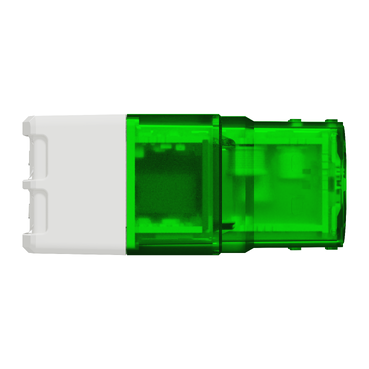

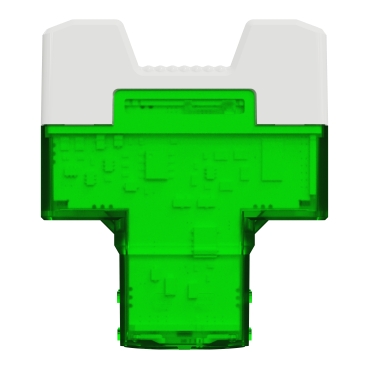

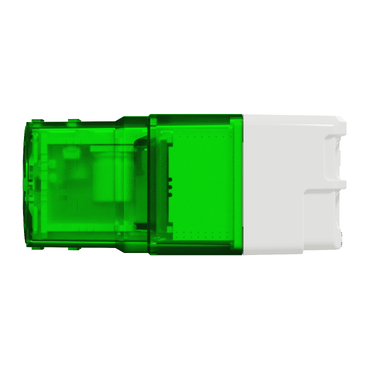

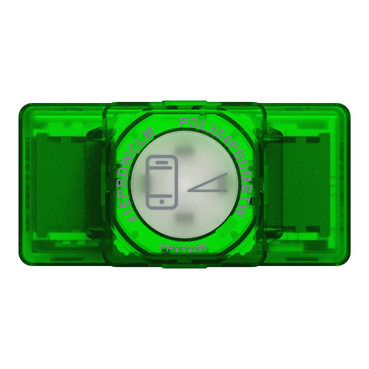

Iconic Wiser Connected Smart Dimmer BLE Default 300W 240V, 300 Series | Vivid White

Item Number: PDL354PBDMBTW-VW

Vivid White 1 PCE 0

For smart device control and configuration with Bluetooth, the Iconic Push Button Wiser Smart Dimmer Module allows you to set timer and scheduling functions through the Wiser App. The mech also allows multiway LED dimming with ControlLink technology.

Where To Buy

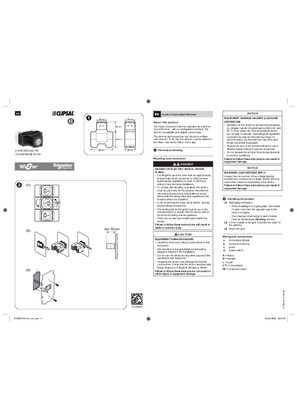

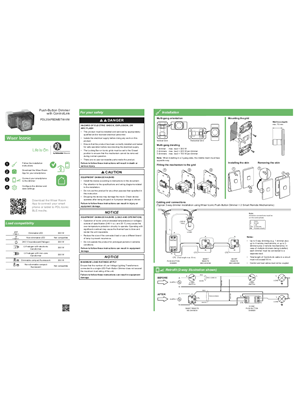

Datasheet

Download

Product Dimensions

Width48 mm

Height22 mm

Embedding depth34 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	EAN	Colour
1	9416175247279	VW
6	9416175247286	VW
72	19416175247276	VW

Specifications

Design

Product brand

PDL

Range

PDL Iconic

Aesthetic name

Iconic

Product or component type

connected dimmer

Device application

light control

Colour tint

vivid white (VW)

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism

Device mounting

flush

Fixing mode

clip-in

Dimmer type

universal

Load type

incandescent lamp: 300 W at 220...240 V AC|halogen lamp: 300 W at 220...240 V AC|LED lamp: 0...130 W at 220...240 V AC|LV halogen lamps: 300 W at 12 V AC (electronic transformer)|LV halogen lamps: 300 W at 12 V AC (wound transformer)

[ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

short-circuit protection|overheating protection|automatic overload protection

Local signalling

programmable: 1 LED (green/red)

Control type

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m|wired ControlLink

Provided equipment

user manual

Wiring configuration

with neutral

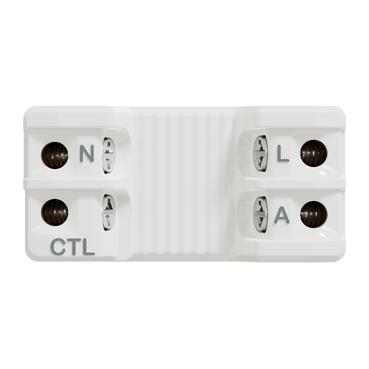

Connections - terminals

screw terminal

Clamping connection capacity

1.5...2.5 mm² for solid cable(s)|1.5...2.5 mm² for solid stranded cable(s)

Mounting support

wall

Type of installation

indoor installation

Quantity per set

1 carton

Embedding depth

34 mm

Depth

66 mm

Width

48 mm

Height

22 mm

Ambient air temperature for operation

5...40 °C

Ambient air temperature for storage

5...40 °C

Ip degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

AS/NZS 60669.2.1 safety|AS/NZS 60669.2.1 EMC|AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2001003EN

Circularity profile

ENVEOLI2001003EN

Material

Material

PC (polycarbonate) GF10 FR: casing|metal: terminals

Others

Package 1 bare product quantity

Package 2 bare product quantity

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Main colour tint

vivid white

Number of function keys

Signalling function

light ON when switch is actuated|programming indication|locator

Number of outputs

Number of ways

5 ways

Software name

Time delay range

1 s...24 h (overtravel)

Maximum number of connected devices

Bluetooth: 15 (smart device)|Bluetooth: 10 (Wiser device)|Bluetooth: 10 (multiway switching between coupled device)

Cable length

50 m for ControlLink module

Technology type

bluetooth low energy default|Zigbee

System requirements

Android 5.1 or higher Wiser App|Apple iOS 10.3 or higher Wiser App|Bluetooth 4.1 or higher Bluetooth|Wiser Home Touch Wiser Home control

Connected auxiliaries

3 Wiser dimmers, distance : 50 m|2 smart push-button remote mechanisms

Memory description

backup memory - date and time for 6 h|backup memory - program for indefinite period

Shape of screw head

pozidriv No 1 and combi

Tightening torque

0.5 N.m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.9 cm

Package 1 width

6.7 cm

Package 1 length

8.7 cm

Package 1 weight

50 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

13 cm

Package 2 width

9.6 cm

VERSION

2.2

DATE

23 Feb 2024

REVISION

2.2

DOWNLOAD (ZIP) 146.1 KB
