Iconic Switch 20A + Permanent Connection Unit 230/240V

Home ProductsSwitches and SocketsPDL IconicSwitch

Iconic Switch 20A + Permanent Connection Unit 230/240V | Vivid White

Item Number: PDL351-VW

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth39 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

switch

Device application

lighting

Colour tint

vivid white (VW)

Surface finish

matt

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Device presentation

complete switch

Provided equipment

skin|grid plate|switch|screws

Type of packing

polybag

Quantity per set

set of 20

Sale per indivisible quantity

1

Load type

fluorescent 16 A|LEDi lamp 200 W|inductive|light|fluorescent lamp

Device mounting

flush

[ue] rated operational voltage

230/240 V

Switch function

1/2-way

Number of gangs

1 gang vertical 84 mm

Number of rocker

1

Actuator

rocker

Fixing mode

by screws

Rated current

20 A/16 AX at 230/240 V AC 50 Hz

Electrical durability

20000 cycles conforming to AS/NZS 60669

Connections - terminals

4 screw terminals

Screwdriver shape

Philips No 2|square drive no 1 (SQ1)

Clamping connection capacity

1.5 mm² for stranded cable(s)|1.5 mm² for flexible cable(s)|1.5 mm² for rigid cable(s)

Wire stripping length

10 mm

Height

120 mm

Width

78 mm

Depth

39 mm

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

0...60 °C

Relative humidity

10...95 %

Product certifications

RCM

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): skin|ABS (acrylonitrile butadiene-styrene): skin|PC (polycarbonate): grid plate|PP (polypropylene): flaps|PC (polycarbonate): housing|PA66: housing|POM (polyoxymethylene): locking bar|PA6: cable entry|PC (polycarbonate): cable entry

Others

Package 1 bare product quantity

1

Motor m-rating as3133

M80

Dielectric strength

20000 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

7.8 cm

Package 1 length

9 cm

Package 1 weight

90 g
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • BIM Model

  • Product Brochures

  • Certificates (MSDS)

  • Declaration of Conformity

Iconic REVIT files
ZIP

Iconic REVIT files

VERSION

1.0

DATE

09 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 544 KB
Electric Home Design Digital Magazine
ZIP

Electric Home Design Digital Magazine

VERSION

4.0

DATE

23 Feb 2024

REVISION

4.0

DOWNLOAD (ZIP) 8.7 MB
PDL_Iconic_Collection
ZIP

PDL_Iconic_Collection

VERSION

3.1

DATE

02 Aug 2022

REVISION

3.1

DOWNLOAD (ZIP) 3.7 MB
Schneider Electric, 40M and 381M switch mechanism, Certificate, RCM, Global Mark Pty LTD
ZIP

Schneider Electric, 40M and 381M switch mechanism, Certificate, RCM, Global Mark Pty LTD

VERSION

1.1

DATE

09 Jul 2024

REVISION

1.1

DOWNLOAD (ZIP) 660.4 KB
Iconic 40M switch series, Certificate, RCM, TUV Rheinland Aust. Pty. Ltd.
ZIP

Iconic 40M switch series, Certificate, RCM, TUV Rheinland Aust. Pty. Ltd.

VERSION

1.1

DATE

23 Feb 2024

REVISION

1.1

DOWNLOAD (ZIP) 1.5 MB
RCM Certificate of Approval (Conformity)
ZIP

RCM Certificate of Approval (Conformity)

VERSION

9.0

DATE

23 Feb 2024

REVISION

9.0

DOWNLOAD (ZIP) 235.7 KB

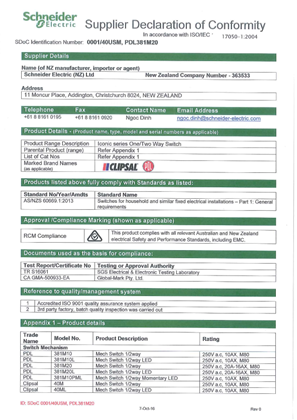

Iconic, Declaration of Conformity
