Iconic Pushbutton TimeClock with Wiser Room & ControlLink, 6A

Home ProductsSwitches and SocketsPDL IconicPushbutton TimeClock

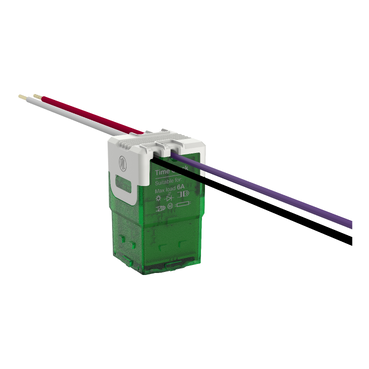

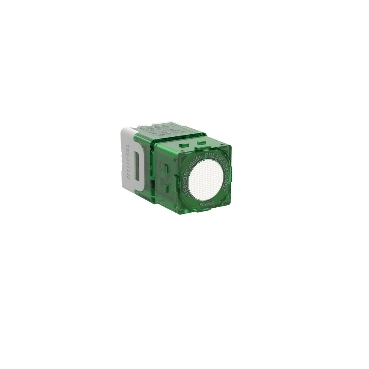

Iconic Pushbutton TimeClock with Wiser Room & ControlLink, 6A | Vivid White

Item Number: PDL346PB6TCMBT-VW

The PDL Iconic Electronic Time Clock Mechanism features Bluetooth Low Energy technology and ControlLink multi-switch control for extra convenience. This time clock switch has 24/7 and 16 on/off schedules with an automatic Daylight Savings Time update.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Embedding depth icon

Embedding depth38 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

electronic time switch

Device application

residential

Colour tint

vivid white

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism

Range compatibility

PDL Iconic plate

Number of channels

1

Device mounting

flush

Actuator

push-button

Fixing mode

clip-in

Connections - terminals

flying leads

Type of packing

box

Sale per indivisible quantity

1

Remote control type

Wiser room application

[ue] rated operational voltage

220...240 V AC 50 Hz

Supply

supercapacitor

Backup time

<= 12 h

Load type

LED lighting 6 A|incandescent lamp 6 A|low voltage halogen lamp with iron core transformer 6 A|low voltage halogen lamp with electronic transformer 6 A|fluorescent lamp 6 A|compact fluorescent lamp 6 A|resistive 6 A

Derating factor

1 devices6 A without derating|2 devices4.5 A with derating factor|3 devices4 A with derating factor|4 devices3 A with derating factor|5 devices2 A with derating factor|6 devices1.5 A with derating factor

Operating distance

30 m

Control signal type

ControlLink

Function available

auto daylight savings adjustment|sunrise/sunset in schedules|automatic with manual override

Wiring configuration

3 wires with neutral

Type of setting

adjustable in 16 schedules

Minimum interval duration

1 min

Local signalling

LED indicator (warm white)

Height

23 mm

Width

23 mm

Depth

40 mm

Embedding depth

38 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Others

Package 1 bare product quantity

1

User language

English

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.9 cm

Package 1 width

6.7 cm

Package 1 length

8.7 cm

Package 1 weight

63 g
Show all specifications
