Iconic Night Walk Sensor Light and Socket Vivid White

Home ProductsSwitches and SocketsPDL IconicNight Walk Sensor Light and Socket

Iconic Night Walk Sensor Light and Socket Vivid White | Vivid White

Item Number: PDL306-VW

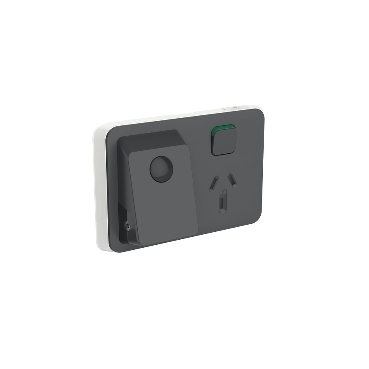

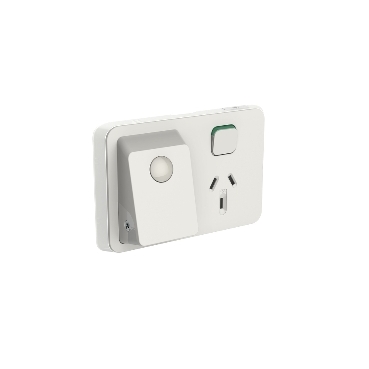

The PDL Iconic Night Walk Sensor Light Smart Skin is a motion-activated skin for outlet sockets with a built-in motion sensor and dual-mode light. A motion-triggered LED light casts just enough light to find your way without turning on a light.

Datasheet

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Iconic

Range

PDL Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

anthracite (AN)|cool grey (CY)|vivid white (VW)|warm grey (WY)

Product destination

switched socket

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 1

Range compatibility

PDL Iconic switched socket

Device mounting

flush

Movement detection area

2 m

Presence detection area

1 m

Operating distance

2 m

Installation direction

horizontal

Fixing mode

plug-in

Height

78 mm

Width

120 mm

Depth

32 mm

Ambient air temperature for storage

-5...65 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...85 %

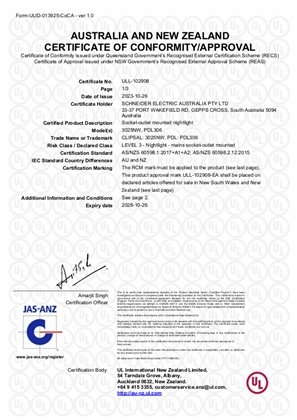

Product certifications

RCM

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2106012

Circularity profile

ENVEOLI2106012

Material

Device composition

1 motion sensor 27 mA|1 LED light 8 mA|1 socket-outlet 10 A

Others

Commercial status history

SESA301466 | Mon Jul 31 22:09:00 EDT 2023 | From Unitary Local | From 20 to 08

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

64 g
Show all specifications
