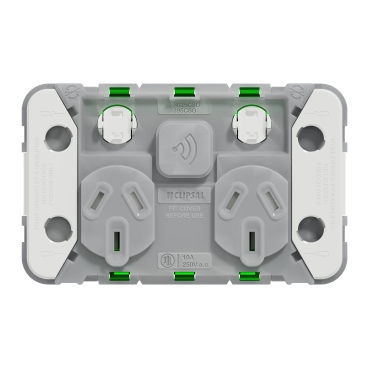

Iconic Grid Wiser Connected Double Socket Smart 10A Zigbee Default 240V

Item Number: PDL395CSGZ

The PDL Iconic Connected Socket is ideal for switching appliances. It works with Wiser and can be connected to the Wiser Hub via Zigbee, enabling the full range of Wiser benefits including Voice control, Remote Access as well as Moments and scheduling features. Both the left and the right socket can be individually controlled. The socket comes as a grid without the PDL Iconic Skin. Note - This product must be installed by an appropriate licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected switched socket

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism with fixing frame

Socket number

2

Outlet poles configuration

2P + E

Device mounting

flush

Rated current

10 A

Number of power socket outlets

2 x connected

[ue] rated operational voltage

240 V AC 50 Hz

Communication network type

wireless Zigbee (2405-2480 MHz), 10 mW at < 50 m

Ip degree of protection

IP20

Local signalling

LED

Control type

rocker on/off switching|by mobile application

Connections - terminals

screw terminals

Clamping connection capacity

2.5 mm²

Fixing mode

by screws

Type of installation

indoor

Ik degree of protection

IK02

Relative humidity

5...90 % non-condensing

Standards

AS/NZS 3112 safety|AS/NZS 60669.2.1 safety|AS/NZS 60669.2.1 EMC|AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2001007EN

Circularity profile

ENVEOLI2001007EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

20

Package 3 bare product quantity

720

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Socket-outlet type

twin switched socket-outlet

Outlet standard deviation

Australian

Signalling function

status

Technology type

bluetooth low energy

Memory description

backup memory - date and time for 6 h|backup memory - program for indefinite period

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.4 cm

Package 1 width

9.5 cm

Package 1 length

14.1 cm

Package 1 weight

202 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

22.7 cm

Package 2 width

26.4 cm

Package 2 length

33.8 cm

Package 2 weight

4.5 kg

Unit type of package 3

P12

Number of units in package 3

720

Package 3 height

95 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

184.0 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • BIM Model

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • System User Guide

  • Certificates (MSDS)

Iconic REVIT files
ZIP

Iconic REVIT files

VERSION

1.0

DATE

09 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 544 KB
PDL, Wiser New Zealand, Consumer Brochure, 998-22076298
ZIP

PDL, Wiser New Zealand, Consumer Brochure, 998-22076298

VERSION

1.0

DATE

16 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 10.5 MB
WISER Catalogue New Zealand
ZIP

WISER Catalogue New Zealand

VERSION

3.0

DATE

09 Nov 2022

REVISION

3.0

DOWNLOAD (ZIP) 18.2 MB

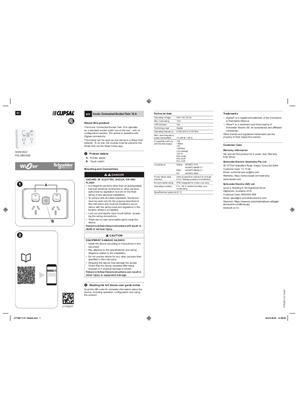

Iconic Connected Socket Twin 10 A - Instruction sheet
ZIP

Iconic Connected Socket Twin 10 A - Instruction sheet

VERSION

2.0

DATE

27 Jun 2024

REVISION

2.0

DOWNLOAD (ZIP) 879.5 KB
Grid Socket Connected Horiz Twin 10A 250V
ZIP

Grid Socket Connected Horiz Twin 10A 250V

VERSION

1.0

DATE

12 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 375.1 KB
Grid Socket Connected Horiz Twin 10A 250V
ZIP

Grid Socket Connected Horiz Twin 10A 250V

VERSION

1.0

DATE

12 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 408.2 KB

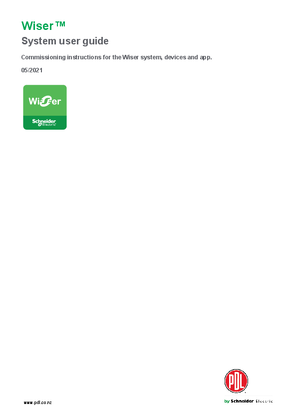

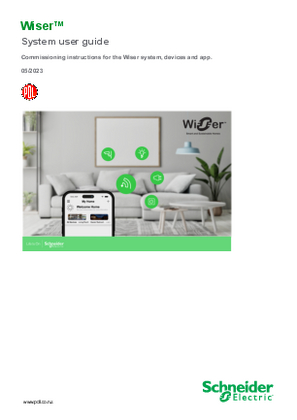

Wiser Pacific System User Guide PDL
ZIP

Wiser Pacific System User Guide PDL

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 10 MB

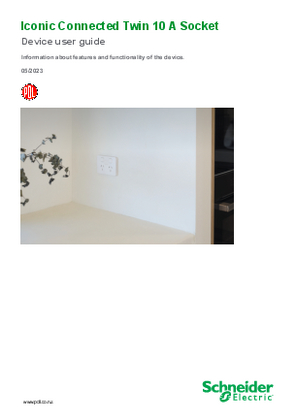

Iconic Connected Twin 10 A Socket (PDL) - Device user guide
ZIP

Iconic Connected Twin 10 A Socket (PDL) - Device user guide

VERSION

1.0

DATE

23 May 2023

REVISION

1.0

DOWNLOAD (ZIP) 22 MB
Wiser - System user guide (Egypt)
ZIP

Wiser - System user guide (Egypt)

VERSION

2.1

DATE

31 Jul 2023

REVISION

2.1

DOWNLOAD (ZIP) 45.1 MB
CA_GMA-506195-EA_Rev01--3025CSOEM_395CSOEM_3025CSG_395CSG smart socket
ZIP

CA_GMA-506195-EA_Rev01--3025CSOEM_395CSOEM_3025CSG_395CSG smart socket

VERSION

1.1

DATE

23 Feb 2024

REVISION

1.1

DOWNLOAD (ZIP) 141.4 KB

Frequently Asked Questions

hide show

What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W
