Iconic Grid Wiser Connected Double Socket Smart 10A BLE Default 240V

Home ProductsSwitches and SocketsPDL IconicGrid Wiser Connected Double Socket

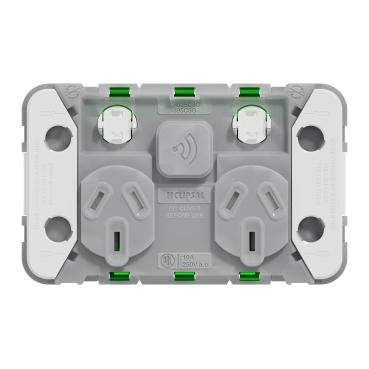

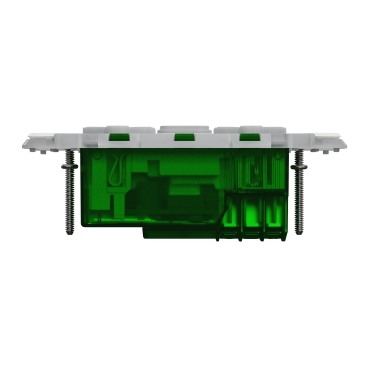

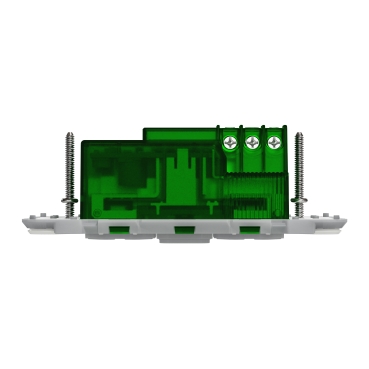

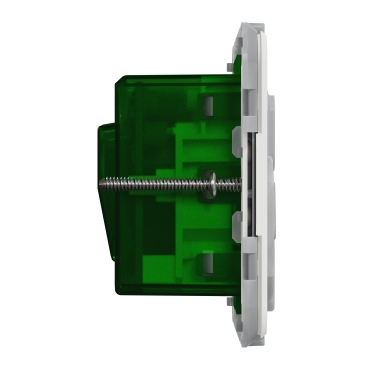

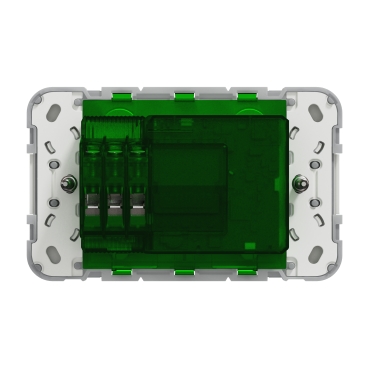

Iconic Grid Wiser Connected Double Socket

Item Number: PDL395CSG

Build this product

The Iconic Connected Smart Socket offers app controlled switching of your plug in appliances with the Wiser Room App using Bluetooth Low Energy (BLE). Set schedules and timers for each outlet and enjoy energy savings and security. This Connected Power Point can future-proof every home.

Where To Buy

Datasheet

PDF datasheet

For PDL395CSG

Download

Barcode

Qty UoM EAN Colour
1 9416175253270 -

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected switched socket

Physical

Device presentation

mechanism with fixing frame

Socket number

2

Outlet poles configuration

2P + E

Device mounting

flush

Rated current

10 A

Number of power socket outlets

2 x connected

[ue] rated operational voltage

240 V AC 50 Hz

Communication network type

wireless Zigbee (2405-2480 MHz), 10 mW at < 50 m

Local signalling

LED

Control type

  • rocker on/off switching
  • by mobile application

Connections - terminals

screw terminals

Clamping connection capacity

2.5 mm²

Fixing mode

by screws

Type of installation

indoor

Ip degree of protection

IP20

Ik degree of protection

IK02

Relative humidity

5...90 % non-condensing

Standards

  • AS/NZS 3112 safety
  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2001007EN

Circularity profile

ENVEOLI2001007EN

Material

Material

plastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

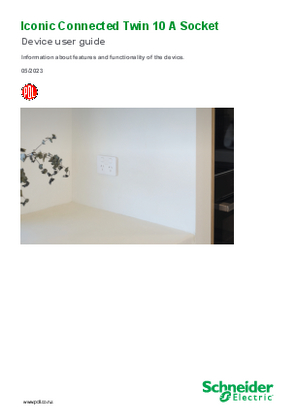

  • Operating Manuals

  • Certificates (MSDS)

  • Page 2  /  2

Frequently Asked Questions

hide show

What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W
