Iconic Grid USB Charging Station 2.1A 220-240VAC 3-Gang

Home ProductsSwitches and SocketsPDL IconicGrid USB Charging Station

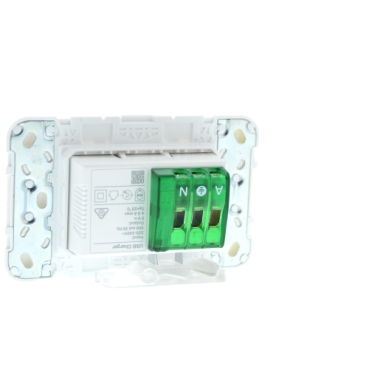

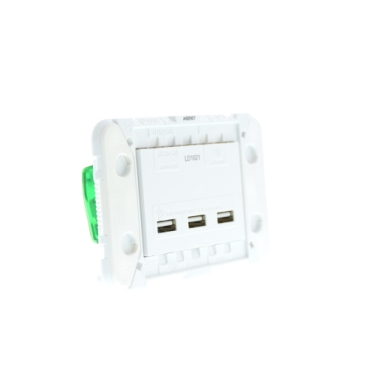

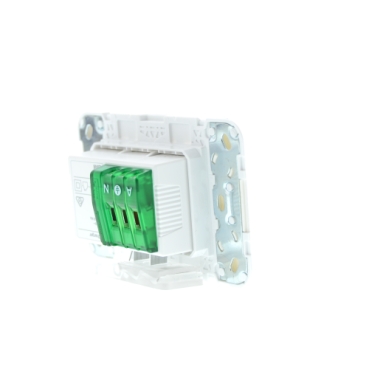

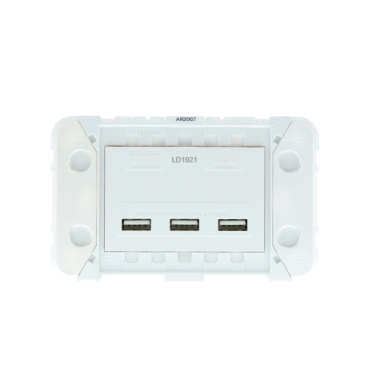

Iconic Grid USB Charging Station 2.1A 220-240VAC 3-Gang

Item Number: PDL343USBG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width40 mm

Height icon

Height71 mm

Embedding depth icon

Embedding depth35 mm

See full specifications View cut out specs

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

USB charger

Colour tint

vivid white

Surface finish

matt|textured

Sustainable offer status

Green Premium product

Physical

[ue] rated operational voltage

220/240 V AC 50 Hz

Integrated connection type

3 USB 2.0 type A 5 V DC, maximum load current: 2.1 A

Output current

4.5 A

Device mounting

flush

Device presentation

mechanism with fixing frame

Fixing mode

by screws

Type of packing

polybag

Sale per indivisible quantity

1

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-5...50 °C

Relative humidity

15...95 %

Protection type

short time short-circuit protection

Number of terminals

3 screw terminal

Screwdriver shape

Philips No 2|square drive no 1 (SQ1)

Clamping connection capacity

4 x 2.5 mm² for stranded cable(s)|4 x 2.5 mm² for flexible cable(s)|4 x 2.5 mm² for rigid cable(s)

Wire stripping length

10 mm

Height

71 mm

Width

40 mm

Depth

40 mm

Embedding depth

35 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2403023EN

Circularity profile

N/A

Others

Commercial status history

SESA301466 | Fri Aug 16 21:13:00 EDT 2024 | From Import Local | From 08 to 14

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1 cm

Package 1 width

1 cm

Package 1 length

1 cm

Package 1 weight

1 g
Show all specifications
