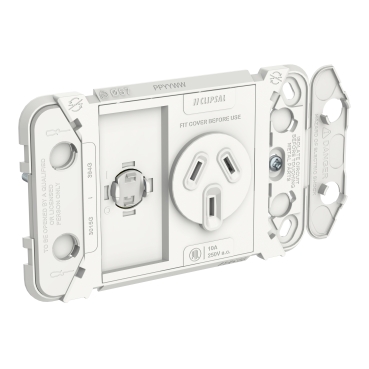

Iconic Grid Switched Socket 10A Horizontal 250V

Iconic Grid Switched Socket 10A Horizontal 250V

Item Number: PDL394G

This PDL 3 Gang Switch Grid is vertically mounted. With its clever clip-on system, once the Switch Grid is installed by an electrician, Iconic Skins can be easily attached or changed to suit the style of the room.

Datasheet

Product Dimensions

Width icon

Width115 mm

Height icon

Height71 mm

Embedding depth icon

Embedding depth24 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

switched socket

Physical

Device presentation

mechanism with fixing frame

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

1

Number of rocker

1

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screw

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Electrical durability

12000 cycles

Screwdriver shape

  • Philips No 2
  • square drive no 1 (SQ1)

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
  • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
  • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)

Wire stripping length

16 mm

Height

71 mm

Width

115 mm

Depth

31 mm

Embedding depth

24 mm

Net weight

0.096 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZS 3112

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.2 cm

Package 1 width

6.6 cm

Package 1 length

6.2 cm

Package 1 weight

62.45 g

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

5.380044592

Global warming ; total life cycle​

5 kg CO2 eq.

Minimum percentage of recycled plastic content

0
