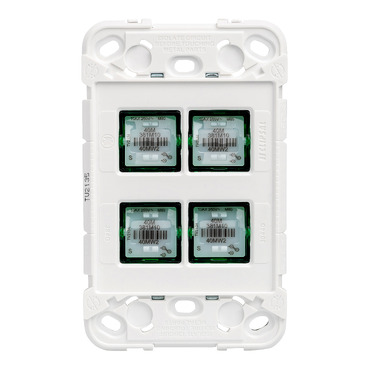

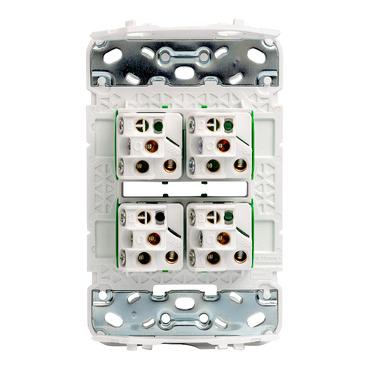

Iconic Grid + Switch
Item Number: PDL384GM10
Iconic grids feature innovative protective flaps, which help prevent screw access after installation, allowing skins to be changed safely at any time. Its matching mounting box can be recessed into the surface of the wall with flush type. It has 4 gangs. It is compatible with the Iconic range. Its rated current is 10AX.
Specifications
Design
Range
Iconic
Product or component type
grid plate
Colour tint
white
Range of product
Iconic
Physical
Number of rocker
4
Load type
- fluorescent 10 A
- LEDi lamp 100 W
Device presentation
mechanism with fixing frame
Device mounting
flush
Local signalling
without light indicator
Width
78 mm
Height
120 mm
Depth
39 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Environmental disclosure
ENVPEP1607003EN
Circularity profile
N/A
