Specifications
Design
Range
PDL Iconic
Product or component type

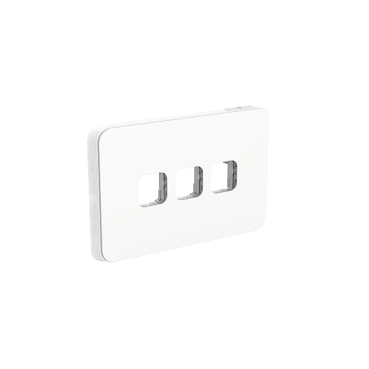

cover frame
Colour tint
vivid white (VW)
Surface finish
matt
Surface treatment
untreated
Sustainable offer status
Green Premium product
Physical
Device presentation
with fixing frame
Provided equipment
grid plate|screws
Type of packing
ziplock polybag
Quantity per set
set of 20
Sale per indivisible quantity
1
Number of gangs
3 gangs horizontal/vertical 84 mm
Number of rocker
3
Fixing mode
by screws
Screwdriver shape
Philips No 2|square drive no 1 (SQ1)
Height
120 mm
Width
78 mm
Depth
17 mm
Net weight
0.064 kg
Ambient air temperature for operation
0...45 °C
Ambient air temperature for storage
0...60 °C
Relative humidity
10...95 %
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1607003EN
Circularity profile
N/A
Material
Material
PC (polycarbonate): grid plate|PP (polypropylene): flaps|POM (polyoxymethylene): locking bar
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.9 cm
Package 1 width
7.8 cm
Package 1 length
5.9 cm
Package 1 weight
59 g
