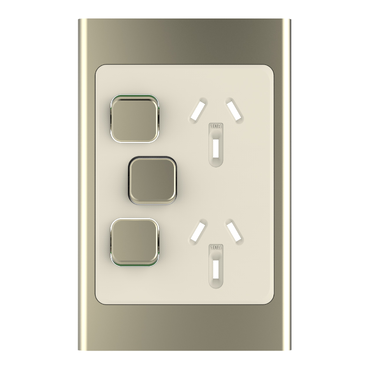

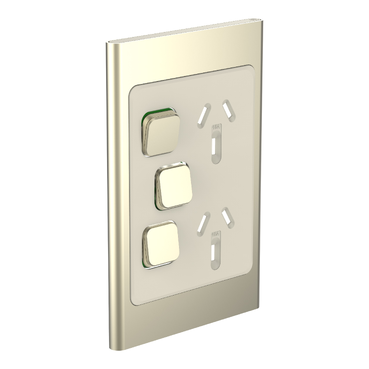

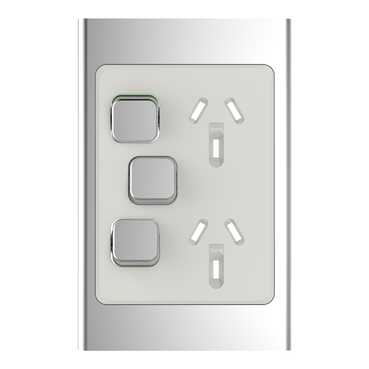

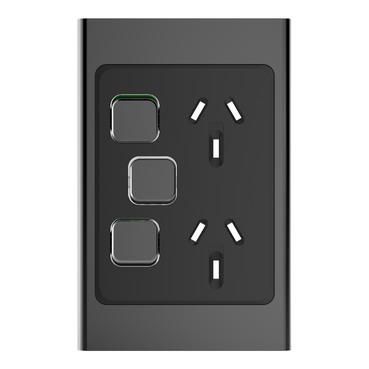

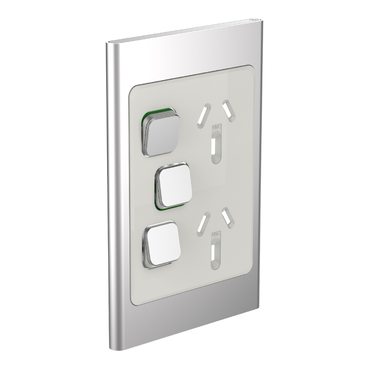

Iconic Styl Cover Plate Double Switched Socket + Switch Vertical

Home ProductsSwitches and SocketsPDL Iconic StylStyl Cover Plate Double Switched Socket + Switch

Iconic Styl Cover Plate Double Switched Socket + Switch Vertical | Silver Shadow

Item Number: PDLS392XC-SH

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width82 mm

Height icon

Height126.0 mm

Depth icon

Depth8.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic Styl

Product or component type

cover frame

Colour tint

cover frame: silver shadow (SH)

Product destination

switched socket

Surface finish

satin

Surface treatment

metallic

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 10

Range compatibility

PDL Iconic switched socket

Device mounting

flush

Number of rocker

3

Number of power socket outlets

2

[in] rated current

10 A

Installation direction

vertical

Fixing mode

clip-on

Height

126.0 mm

Width

82 mm

Depth

8.5 mm

Net weight

0.03 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): window|ABS (acrylonitrile butadiene-styrene): skin|aluminium

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1 cm

Package 1 width

8.17 cm

Package 1 length

12.62 cm

Package 1 weight

52 g
Show all specifications
