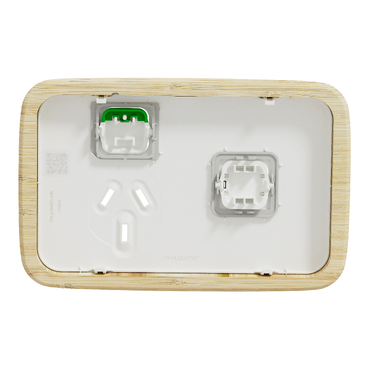

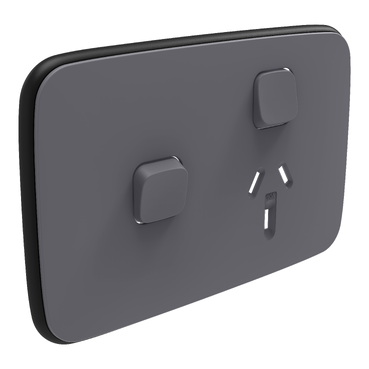

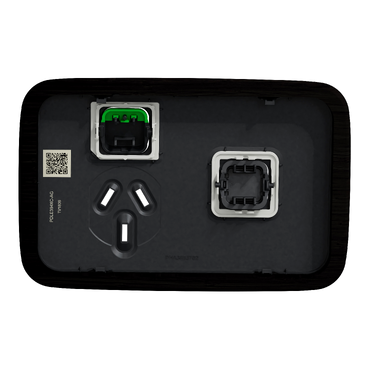

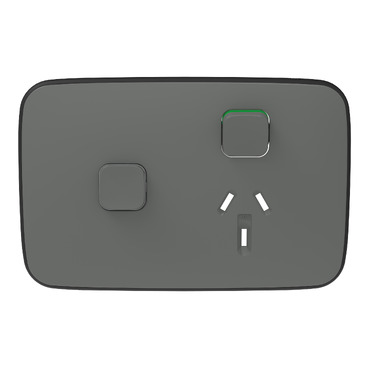

Iconic Essence Cover Plate Switched Socket + Switch Horizontal

Home ProductsSwitches and SocketsPDL Iconic EssenceEssence Cover Plate Switched Socket + Switch

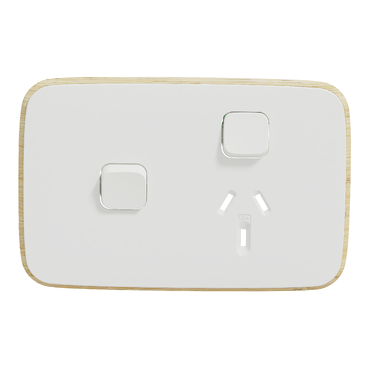

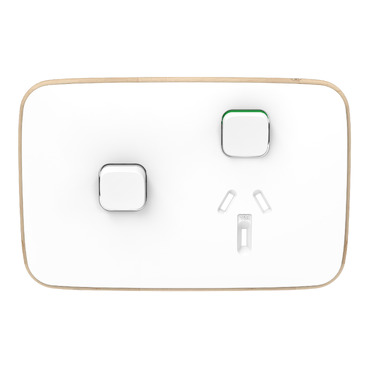

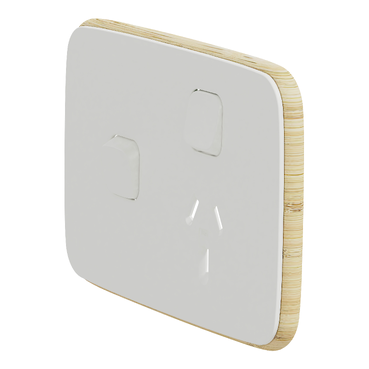

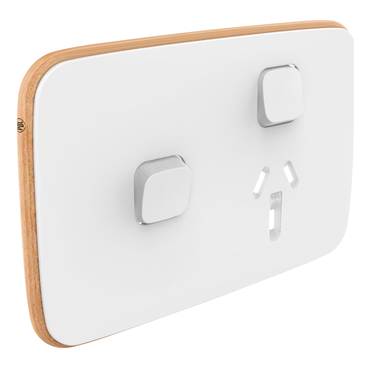

Iconic Essence Cover Plate Switched Socket + Switch Arctic White

Item Number: PDLE394XC-AW

Build this product

Where To Buy

Datasheet

PDF datasheet

For PDLE394XC-AW

Download

Product Dimensions

Width icon

Width131.0 mm

Height icon

Height85.0 mm

Depth icon

Depth8.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9416175262234 Arctic White

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic Essence

Product or component type

cover frame

Colour tint

  • cover frame: arctic white (AW)
  • edge: birch

Product destination

switched socket

Surface finish

matt

Physical

Type of packing

polybag

Quantity per set

set of 10

Range compatibility

PDL Iconic switched socket

Device mounting

flush

Number of rocker

2

Number of power socket outlets

1

[in] rated current

10 A

Installation direction

horizontal

Fixing mode

clip-on

Height

85.0 mm

Width

131.0 mm

Depth

8.5 mm

Net weight

0.03 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Material

Material

birch timber: cover frame
Show all specifications
