Modena and Strato 800 Series Half Standard Printed Switch 1 Way, 16A/16AX, Outside Legend

Home ProductsSwitches and SocketsModena and Strato 800 SeriesHalf Standard Printed Switch

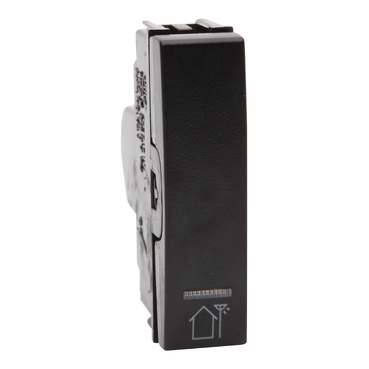

Modena and Strato 800 Series Half Standard Printed Switch Black

Item Number: PDL860M16OBK

Discontinued

Where To Buy

Datasheet

PDF datasheet

For PDL860M16OBK

Download

Product Dimensions

Width icon

Width12.4 mm

Height icon

Height45.5 mm

Depth icon

Depth21.45 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9416175234224 Black
20 9416175254949 Black
60 19416175234221 Black
See all

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

matt

Physical

Control type

rocker

Quantity per set

set of 20

Type of packing

carton

Installation direction

  • vertical
  • horizontal

Width

12.4 mm

Height

45.5 mm

Depth

21.45 mm

Rated current

  • 16 AX
  • 16 A

[ue] rated operational voltage

250 V

Marking

outside

Mounting mode

front

Connector type

#1 Square Head/#2 Phillips Screw

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Quick Start Guide

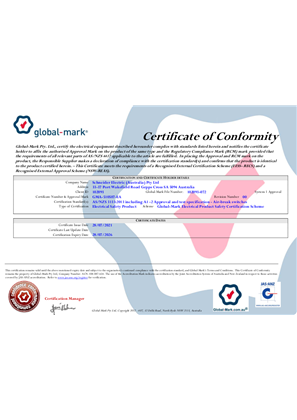

  • Certificates (MSDS)
