Datasheet
For ABC15VDMLBLF-DB
Close
Specifications
Design
Range of product
Series ABC
Product or component type
switched socket
Product brand
Clipsal
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- rocker
- switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
vertical
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Depth
70 mm
Length
220 mm
Width
175 mm
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133:approval number S/1
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
stainless steel
Documents & downloads
hide showFilter items
-
All
-
CAD Files and Packs
-
Installation Instruction
-
Specification Guide
ZIP
Revit Pack Metal Plate
VERSION
1.0
DATE
15 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 4.6 MB
ZIP
Installation Instructions - F1891/02 - BBSL Range Cleaning Cord Information Tag, 17585
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 127.2 KB
ZIP

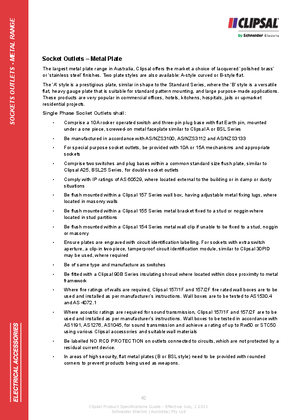

Technical Specifications - Socket Outlets - Metal Plate
