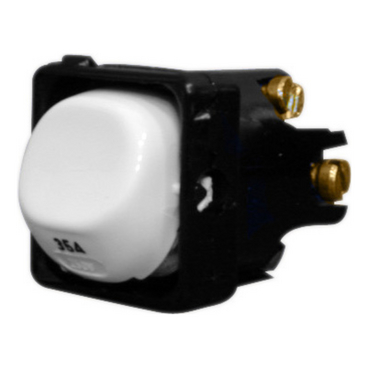

Mechanisms, Switch Mechanism, 250V 35A, 1 way/2 way White Electric
Item Number: 30M35-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series|Series 30
Product brand
Clipsal
Surface finish
glossy
Sustainable offer status
Green Premium product
Physical
Device presentation
basic element
Number of poles
1
Device mounting
flush
Number of rocker
1
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
35 A
Marking
without marking
Actuator
rocker
Switch function
1-pole
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride)
Others
Package 1 bare product quantity
1
Marking location
marking on surface
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.36 cm
Package 1 width
2.36 cm
Package 1 length
2.9 cm
Package 1 weight
16.5 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Environmental Disclosure
-
Certificates (MSDS)
-

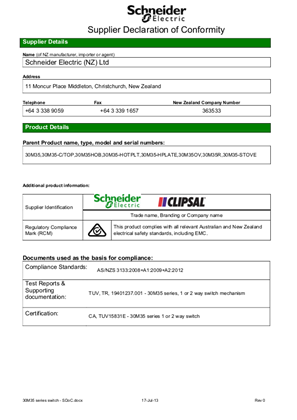

Declaration of Conformity
