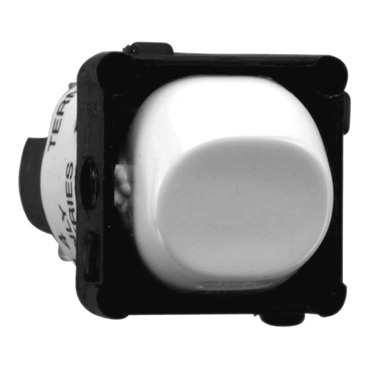

Mechanisms, Switch Mechanism, 250V, 10A, Double Pole, Single Throw

Home ProductsSwitches and SocketsClipsal - MechanismsSwitch Mechanism

Mechanisms, Switch Mechanism, 250V, 10A, Double Pole, Single Throw White Electric

Item Number: 30MD-WE

Switch mechanism. Double-pole, single throw switch. 30 Series mechanism. Suitable for Clipsal C2000. Colour: White Electric Rated current: 10A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 30|Standard Series

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Number of poles

2

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Load type

fluorescent lamp 10 A|LEDi lamp 100 W

Marking

without marking

Actuator

rocker

Switch function

2-pole

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PVC (polyvinyl chloride)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.36 cm

Package 1 width

2.36 cm

Package 1 length

2.9 cm

Package 1 weight

14 g
Show all specifications
