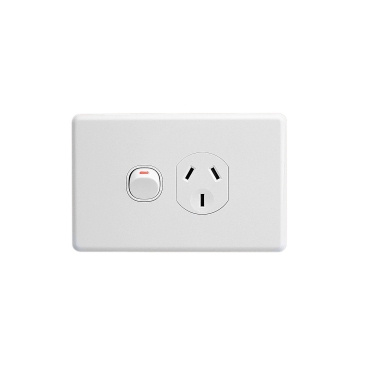

C2000 Series, Single Switch Socket Outlet, 250V, 10A, Safety Shutter

C2000 Series Single Switch Socket Outlet 250V, 10A, Safety Shutter | Cream

Item Number: C2015S-CM

Discontinued

Socket outlet for horizontal installations. Single switched socket with safety shutter. Clipsal C2000. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

PDF datasheet

For C2015S-CM

Barcode

Qty UoM EAN Colour
1 9311554352332 Cream
10 9311554365745 Cream
100 19311554365742 Cream

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

switch|rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

28 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

AS/NZS 3112

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic
Show all specifications
