C2000 Series Flush Switch 1 Gang, 250VAC, 10A, Classic , Vertical, IP66

Home ProductsSwitches and SocketsC2000 SeriesFlush Switch

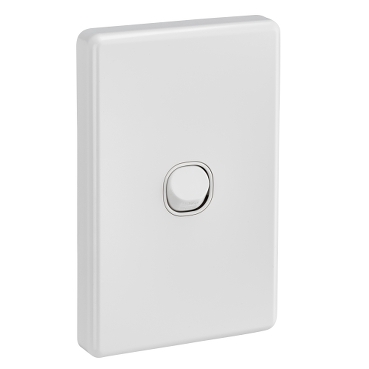

C2000 Series Flush Switch White Electric

Item Number: C2031V66-WE

Switch assembly. C2000 cover plate, grid and switch mechanism are included. Suitable for 1-gang vertical installations that require IP66 rated protection. Assembled with plate. Clipsal C2000. Colour: White Electric Rated current: 20A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

For C2031V66-WE

Download

Barcode

Qty UoM EAN Colour
1 9311554559830 White Electric
25 19311554559837 White Electric
See all

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Physical

Device presentation

basic element with full cover plate and grid

Number of poles

1

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

  • 10 AX, fluorescent lamp
  • 20 A

Marking

without marking

Fixing mode

by screws

Actuator

rocker

Switch function

1-pole

Standards

AS/NZS 60669.1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Certificates (MSDS)

  • Page 2  /  2

Frequently Asked Questions

hide show

What is part number for switch rated at IPX4?

The part number for the switch is a - C2031V66 & C2032V66.
C2031V66
Please go to the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=C2031V66&itemno=C2031V66-WE&backto=/search?q=C2031V66&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=C2031V66&itemno=C2031V66-WE&backto=/search?q=C2031V66&tab-document-1=0

C2032V66
Please go to the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=C2032V66&itemno=C2032V66-WE&backto=/search?q=C2032V66&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=C2032V66&itemno=C2032V66-WE&backto=/search?q=C2032V66&tab-document-1=0
