Datasheet

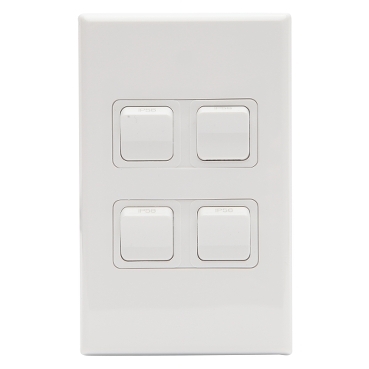

For PDL684VWPWH
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Colour tint
white
Surface finish
gloss
Physical
Control type
rocker
Installation direction
vertical
Length
74 mm
Width
118 mm
Rated current
- 16 AX
- 20 A
[ue] rated operational voltage
250 V
Number of gangs
4 gangs
Number of poles
1
Mounting mode
surface mounted
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
