600 Series Switch Module 2-Way 20A 16AX 1P

Home ProductsSwitches and Sockets600 SeriesSwitch Module

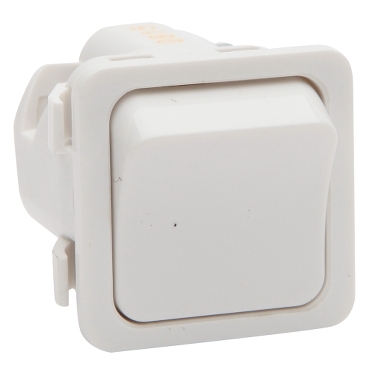

600 Series Switch Module 2-Way 20A 16AX 1P | White

Item Number: PDL681M20WH

Switch mechanism. Single-pole switch. Suitable for 1-gang installations. 600 Series mechanism. Suitable for PDL 600. Colour: White Rated current: 20A / 16AX. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Control type

rocker

Installation direction

vertical|horizontal

Length

23 mm

Width

23 mm

Depth

26 mm

Rated current

20 A|16 AX

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Number of poles

1

Mounting mode

front

Ambient air temperature for operation

-10...40 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M60

Network number of phases

1 phase

Cable cross section

2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

2.5 cm

Package 1 length

2.5 cm

Package 1 weight

13.74 g
