Datasheet

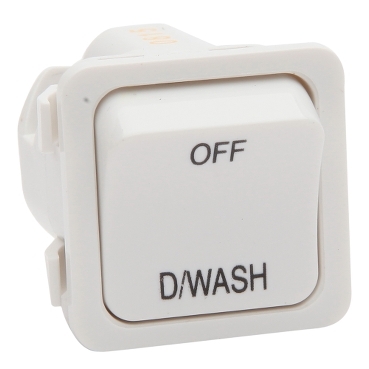

For PDL681M20DWWH
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Colour tint
white
Surface finish
gloss
Physical
Control type
rocker
Installation direction
- vertical
- horizontal
Length
23 mm
Width
23 mm
Depth
26 mm
Rated current
- 16 AX
- 20 A
[ue] rated operational voltage
250 V
Number of gangs
1 gang
Number of poles
1
Mounting mode
front
Ambient air temperature for operation
-10...40 °C
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
