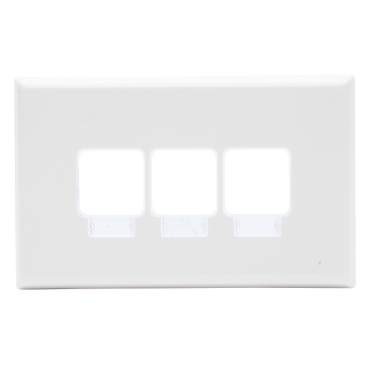

600 Series Switch 20A 16AX 3-Gang Identification Horizontal | White
Item Number: PDL683HIDWH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Colour tint
white
Surface finish
glossy
Sustainable offer status
Green Premium product
Physical
Installation direction
horizontal
Length
118 mm
Width
74 mm
Number of gangs
3 gangs
Device mounting
surface
Fixing center
84 mm
Quantity per set
set of 10|set of 100
Type of packing
carton
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 cm
Package 1 width
7.5 cm
Package 1 length
12 cm
Package 1 weight
0.051 kg
