600 Series Relay Module

Item Number: PDL600RM

1 PCE 1

Relay module. PDL 600. Rated current: 6AX. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

For PDL600RM

Download

Barcode

Qty	EAN	Colour
1	9416175224768	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		9416175224768	-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

opaque

Physical

Installation direction

vertical

Width

37 mm

Height

23 mm

Rated current

6 AX
16 A

[ue] rated operational voltage

230/240 V

Number of poles

Mounting mode

front

Ambient air temperature for operation

-40...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2407007EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Network frequency

50 Hz

Network number of phases

1 phase

Contacts type and composition

NO/NC

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.0 cm

Package 1 width

4.0 cm

Package 1 length

15.0 cm

Package 1 weight

44.0 g

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.8448866907

Global warming ; total life cycle

1 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

All
Product Brochures
Operating Manuals

ZIP

600 & 500 Series brochure

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB

ZIP

Electric Home Design Digital Magazine

VERSION

4.0

DATE

23 Feb 2024

REVISION

4.0

DOWNLOAD (ZIP) 8.7 MB

ZIP

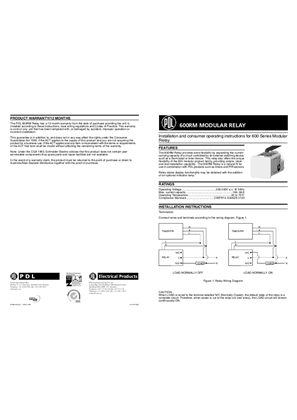

600 Series installation and operating instructions for modular relay - 600RM

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 511.7 KB

Frequently Asked Questions

hide show

What do 16A & 6AX ratings mean on the PDL600RM?

It means the relay module can switch a load of up to 16A resistive or a 6A fluorescent or Inductive load.

https://www.se.com/nz/en/product/PDL600RM/relay-module-600-series---240-v---6-ax/

Can I get an intermediate Saturn series mech with an LED?

No, these are not saturn PBL Blue LED intermediate switch available, but you can create one using a 2 way standard 60PBL 2 way push switches with LED's switch using a PDL600RM relay, as per the attached wiring diagram.
