Datasheet

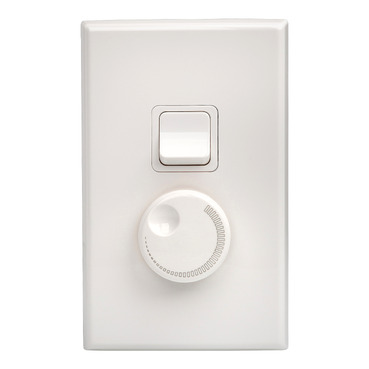

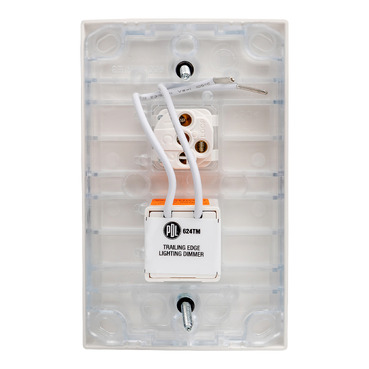

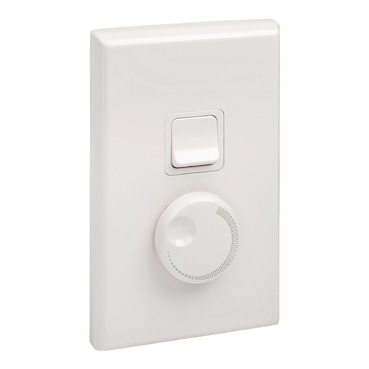

For PDL624TWH
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Colour tint
white
Surface finish
gloss
Physical
Dimmer control
rotary push type
Installation direction
vertical
Length
118 mm
Width
74 mm
Rated current
- 16 AX
- 20 A
[ue] rated operational voltage
230/250 V
Number of gangs
1 gang
Mounting mode
surface mounted
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Under investigation
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Operating Manuals
-
Declaration of Conformity
ZIP
600 & 500 Series brochure
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 2.6 MB
ZIP
Electric Home Design Digital Magazine
VERSION
4.0
DATE
23 Feb 2024
REVISION
4.0
DOWNLOAD (ZIP) 8.7 MB
ZIP
600 Series installation instructions for 624T and 624TM trailing edge dimmers
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
DOWNLOAD (ZIP) 422.2 KB
ZIP

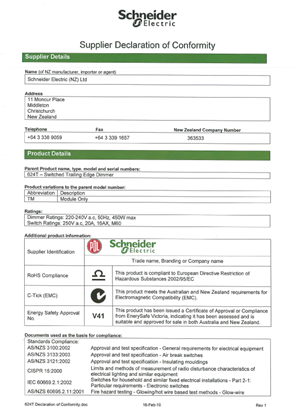

600 Series, 624T, Supplier Declaration of Conformity
VERSION
1.0
DATE
07 Mar 2024
REVISION
1.0
DOWNLOAD (ZIP) 741.2 KB
