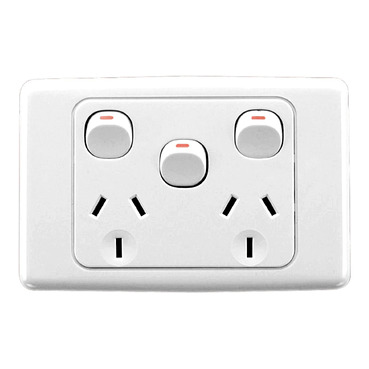

2000 Series, Twin Switch Socket Outlet, 250V, 10A, Removable Extra Switch White Electric
Item Number: 2025XA-WE
Datasheet
Close
Specifications
Design
Range of product
Series 2000
Product or component type
switched socket
Product brand
Clipsal
Surface finish
glossy
Sustainable offer status
Green Premium product
Physical
Control type
ON/OFF button
Number of gangs
2 gangs
Pin number
3
Number of power socket outlets
2
Actuator
rocker|switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Depth
28 mm
Length
116 mm
Width
76 mm
Fixing center
84 mm
Standards
AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
plastic
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.5 cm
Package 1 width
12 cm
Package 1 length
2.5 cm
Package 1 weight
130 g
