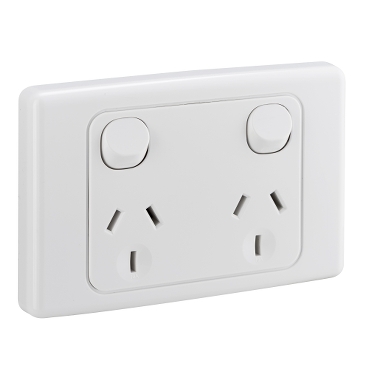

2000 Series, Twin Switch Socket Outlet, 250V, 10A

Home ProductsSwitches and Sockets2000 SeriesTwin Switch Socket Outlet

2000 Series, Twin Switch Socket Outlet, 250V, 10A White Electric

Item Number: 2025-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 2000

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

13 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Product certifications

RCM

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.3 cm

Package 1 width

7.6 cm

Package 1 length

11.6 cm

Package 1 weight

116 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

12.4 cm

Package 2 width

14.6 cm

Package 2 length

16.4 cm

Package 2 weight

1.16 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • BIM Model

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity

Revit Pack 2000 Series
ZIP

Revit Pack 2000 Series

VERSION

1.0

DATE

09 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 456 KB
A Great Gang of Surrounds
ZIP

A Great Gang of Surrounds

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 672.6 KB
2000 Series - Functionality, Flexibility and Fashion
ZIP

2000 Series - Functionality, Flexibility and Fashion

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB
Revit Pack Standard Range
ZIP

Revit Pack Standard Range

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
2000 Series Technical Data, versatility and reliability, 15219
ZIP

2000 Series Technical Data, versatility and reliability, 15219

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.5 MB
Electromechanical Sockets
ZIP

Electromechanical Sockets

VERSION

2.0

DATE

09 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 362.7 KB
Technical Specifications - Socket Outlets - 2000 Series
ZIP

Technical Specifications - Socket Outlets - 2000 Series

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 194.4 KB
Clipsal, 25 and 2025 series socket outlet, Certificate, RCM, ULNZ LTD
ZIP

Clipsal, 25 and 2025 series socket outlet, Certificate, RCM, ULNZ LTD

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 239.2 KB
CA_GMA-502012-EA Rev02--2025 series socket
ZIP

CA_GMA-502012-EA Rev02--2025 series socket

VERSION

2.0

DATE

23 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 151.1 KB
Classic C2000 Series, Declaration of Conformity
ZIP

Classic C2000 Series, Declaration of Conformity

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 62.9 KB
