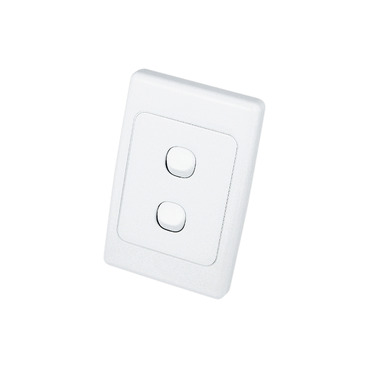

2000 Series Switch IP66 Rated, 2 Gang 250V 10AX, Vertical | White Electric
Item Number: 2032V66-WE
Discontinued
Datasheet
For 2032V66-WE
Close
Specifications
Design
Range of product
Series 2000
Product brand
Clipsal
Physical
Device presentation
basic element with full cover plate and grid
Device mounting
flush
Number of rocker
2
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A|10 AX, fluorescent lamp
Marking
without marking
Fixing mode
by screws
Actuator
rocker
Switch function
2-way|1-way
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
