Iconic Wiser Connected Smart Switch BLE Default 10AX/15A 240V, 300 Series

Home ProductsSmart HomePDL WiserWiser Connected Smart Switch

Iconic Wiser Connected Smart Switch BLE Default 10AX/15A 240V, 300 Series | Vivid White

Item Number: PDL356PB10MBTW-VW

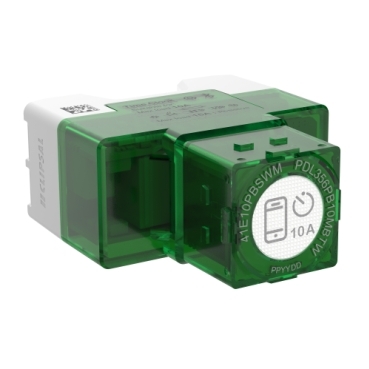

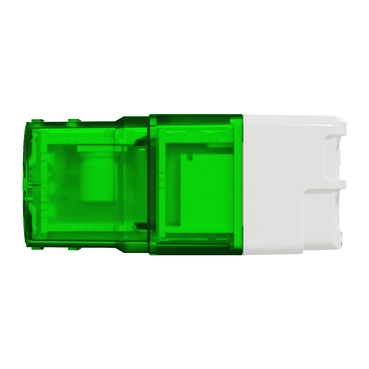

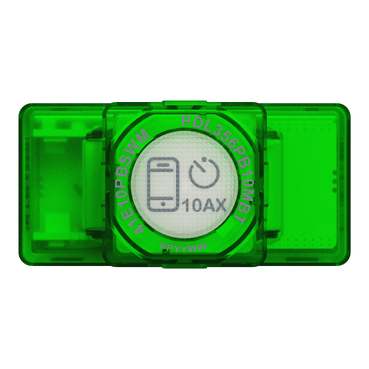

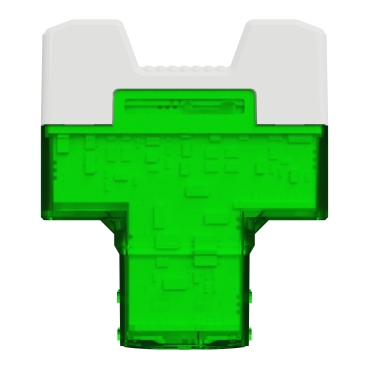

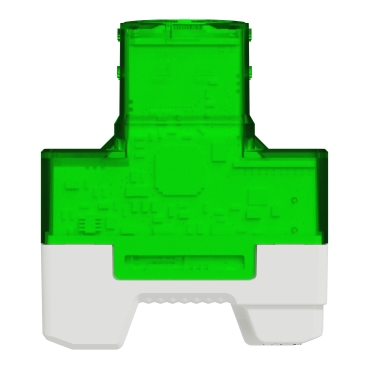

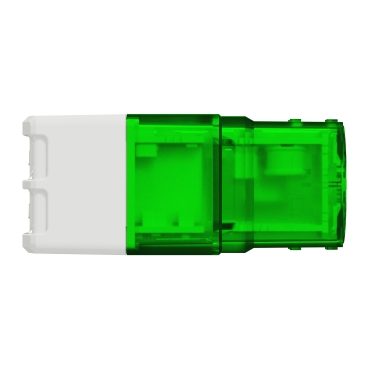

The Iconic Push Button Connected Smart Switch 10 AX is suitable for hard-wired multiway switching. It can be controlled through ControlLink, the push button on the wall, or point to point using Bluetooth Low Energy (BLE) and the Wiser by SE app. With the Wiser by SE app, the Connected 10AX Switch offers on/off control, 1s-24hr timer and 24/7 scheduling functions.

Where To Buy

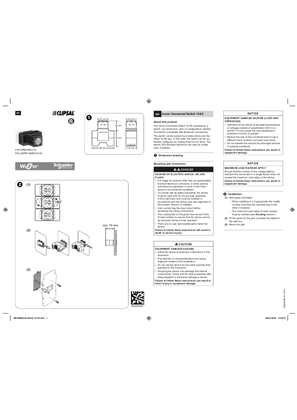

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width48 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected switch

Colour tint

vivid white (VW)

Surface finish

glossy

Physical

Device presentation

mechanism

Number of rocker

1

Actuator

push-button

Load type

dimmable LED lighting driver: 10 A|LED lighting driver (non-dimmable): 10 A|electronic transformer: 10 A|medium voltage halogen lamp: 10 A|linear fluorescent ballast: 10 A|inductive: 6 A (cos phi =0.6 )|resistive: 15 A|motor: 10 A

[ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

over temperature protection|thermal protection

Local signalling

LED

Control type

push-button|by mobile application|multi-way control via ControlLink

Communication network type

wireless (2.4-2.4 GHz), 2.5 mW at < 50 m

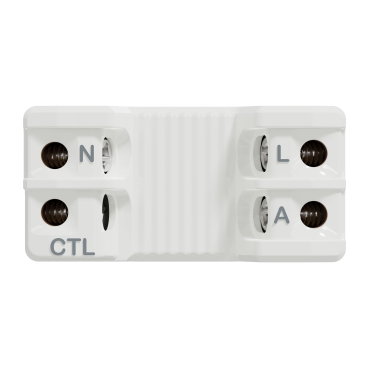

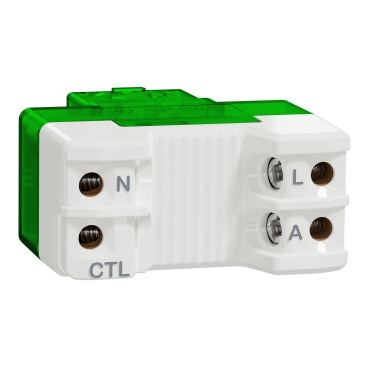

Wiring configuration

3-wire

Mounting support

grid

Device mounting

flush

Fixing mode

clip-in

Fixing center

84 mm

Type of installation

indoor installation

Embedding depth

70 mm

Depth

56 mm

Width

48 mm

Height

22 mm

Ip degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

AS/NZS 60669.2.1 safety|AS/NZS 60669.2.1 EMC|AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2001003EN

Circularity profile

ENVEOLI2001003EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Technology type

electronic

Software name

Wiser App

Maximum number of connected devices

3 (switch)|2 (ControlLink module)

Cable length

50 m for ControlLink module

Technology type

bluetooth low energy default|Zigbee

Memory description

backup memory - date and time for 6 h|backup memory - program for indefinite period

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

7.8 cm

Package 1 length

9.5 cm

Package 1 weight

91 g

Unit type of package 2

CAR

Number of units in package 2

48

Package 2 height

224 cm

Package 2 width

261 cm

Package 2 length

335 cm

Package 2 weight

5000 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

4.9776685577
Show all specifications

Frequently Asked Questions

hide show

What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W

I am getting a message in Wiser by SE ‘Network Unavailable. Please check your phones network settings’ what does this mean for my control of the products?

This message occurs when there is no mobile data connection or a WiFi connection to your device. When this occurs, you will still be able to connect to your Bluetooth switches/dimmers as these just require Bluetooth to be enabled on your device. It will prevent access/control of Zigbee devices and IP Cameras as this requires access to the cloud/internet. Via WiFi, without internet, you may still get control of the Zigbee switches/dimmers but not the IP Cameras.


My Wiser switches are not responding to being pressed or control via Wiser by SE, what can I do to troubleshoot the issue?

Begin by taking note of the product/s that are not responding and are they doing anything else different from normal operation? For example, is the backlight flashing in a sequence, does the product respond to three presses and shows the pairing led colouring and what colours are seen. If what is suggested below does not resolve the switches not responding these details can assist the Tech Support team in diagnosing what is occurring.

Once this has been taken note of begin by power cycling your Wiser Hub. This can be done by removing the micro-USB where it connects to the Hub or by turning off the power outlet that supplies power to the Hub. Leave it off for 10 – 15 seconds and then reconnect the Wiser Hub and wait until it completes its reboot procedure at the end of which only 2 LED indicators should be visible on the Wiser Hub. With LEDs at top of Hub - if connected with Ethernet cable (Right and Left Led will turn ON). If connect via WiFi (Middle and Right Led will turn ON)

If this fails to resolve the issue the product failing to respond may need to be power cycled itself. If confidant and able, access the switchboard that has the RCBO’s or Circuit breakers that supply power to the products. Turn the applicable supply off for 10 – 15 seconds and then turn this supply back on.

Note: If uncertain contact your installing electrician for the Wiser system who may advise what is supplying power to the Wiser products. If fuses are installed in your switchboard it is recommended to have your electrician remove the fuse and then re-fit after 10 – 15 seconds. Fuses can be extremely dangerous if not correctly handled by a qualified electrician.

If the switches are still unresponsive contact Tech Support via phone – Australia: 13 73 28 (13 SEAU) New Zealand 0800 652 999, email - techsupport.pz@se.com or via online chat through a link on our support page https://www.clipsal.com/clipsal-support/contact-us or https://www.pdl.co.nz/support
