PDL Wiser Temperature/Humidity Smart Sensor 3 V DC IP20, White

Item Number: PDL593011

1 PCE 0

The Wiser Temperature/Humidity Smart Sensor helps to maintain a comfortable environment in the home by detecting changes in temperature and humidity and reporting climate data to the Wiser Hub.

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height45 mm

Depth17.2 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		9416175268588	-
40		19416175268585	-

Specifications

Design

Product brand

PDL

Range

Wiser

Product or component type

sensor

Colour tint

white (RAL 9003)

Sustainable offer status

Green Premium product

Physical

Sensor type

humidity sensor|temperature

Supply

battery3 V / CR2450

Device presentation

complete product

Device mounting

surface

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

Local signalling

1 orange LED blinking , function: battery needs replacing

Minimum interval duration

30 min|10 min|5 min|1 min

Fixing mode

by screws and dowels|adhesive tape

Depth

17.2 mm

Height

45 mm

Width

45 mm

Standards

EN/IEC 60730-2-9|EN/IEC 60730-2-13

Product certifications

CE|Zigbee 3.0

Ambient air temperature for operation

-10...50 °C

Relative humidity

10...95 %

Ip degree of protection

IP20

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

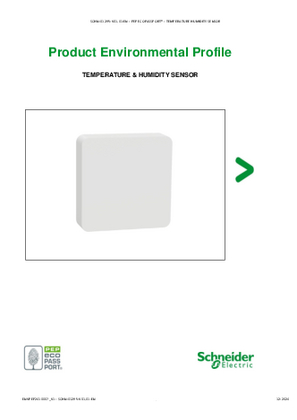

Environmental disclosure

ENVPEP1804008EN

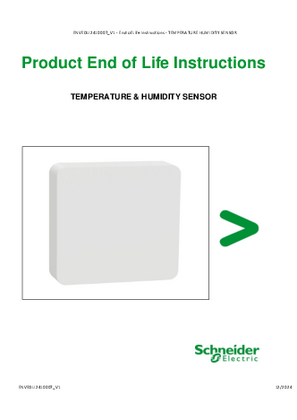

Circularity profile

ENVEOLI1804008EN

Others

Package 1 bare product quantity

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Main colour tint

white

Battery life

5 year(s)

Measurement range

10...95 % RH

Measurement temperature

-10...50 °C

Operating altitude

<= 2000 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.2 cm

Package 1 width

7.5 cm

Package 1 length

7.5 cm

Package 1 weight

75.0 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

3.32 kg

Unit type of package 3

P06

Number of units in package 3

640

Package 3 height

75 cm

Package 3 width

60 cm

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 111.4 KB

Frequently Asked Questions

hide show

My Wiser battery device is showing the battery is almost flat, can I replace the battery and what do I replace it with?

All battery devices in the Wiser range have pictograms on how to change the battery in the instructions, which are available on the appropriate product page on our website (https://www.clipsal.com/products/wiser-smart-home-solutions). It also states the type of battery used for each unit.

CLP591011/PDL591011 - Window/Door Sensor - CR2450 x 1
CLP595011/PDL595011 - Motion Sensor - LR03 AAA x 2
CLP593011/PDL593011 - Temp/Humidity Sensor - CR2450 x 1
CLP592011/PDL592011 - Water Leakage Sensor - LR03 AAA x 2

My Wiser battery device is showing the battery is almost flat, but it hasn’t been 5 years?

The battery devices state Up to 5 years and that this may vary based on the default settings, usage, frequency of firmware updates and the environment its placed in.
For example if the Temperature/Humidity sensor was placed where temperature fluctuation were happening frequently this would increase the number of reports it sends and therefore increase the battery usage when compared to one that is reporting less frequently.
