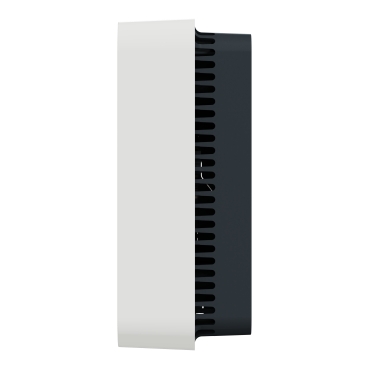

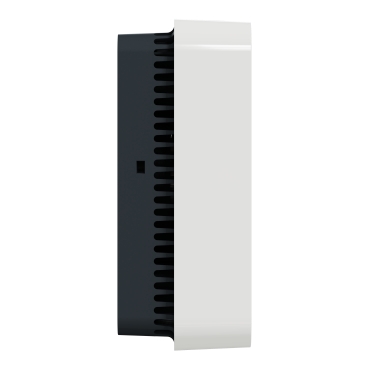

PDL Wiser Smoke detector 230V, IP20, white

Item Number: CLP599WSA

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width115 mm

Height43 mm

Depth115 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		9311554815219	-
24		19311554815216	-

Specifications

Design

Range of product

Wiser

Range

Wiser

Product brand

Clipsal

Product or component type

smoke detector

Device application

early detection of smouldering fires and open fires

Colour tint

white (RAL 9003)

Physical

Type of packing

carton

Supply

mains

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

Function available

local alarm

Control type

button (test/hush function)

Operating distance

50 m indoor

Local signalling

visual: 1 LED (red) for warning and low battery

Connections - terminals

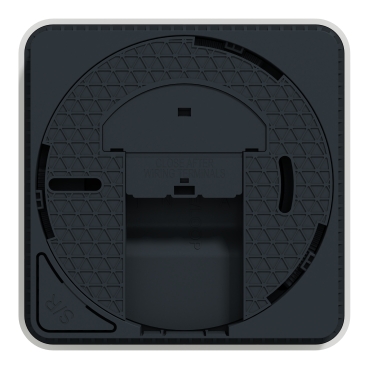

screw terminal (back of the device)

Type of installation

indoor

Device mounting

surface

Mounting support

ceiling

Fixing mode

by screws

Height

43 mm

Width

115 mm

Depth

115 mm

Ip degree of protection

IP20

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

-20...60 °C

Relative humidity

0...95 %

Product certifications

Standards

EN 14604

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2108022EN

Circularity profile

ENVEOLI2108022EN

Material

Material

thermoplastic

Others

Commercial status history

SESA65112 | Tue Jan 23 20:15:00 EST 2024 | From Unitary Local | From 04 to 08

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

288

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Electronic sensor type

photo-electric sensor

[us] rated supply voltage

110...240 V AC 50/60 Hz

Detection type

heat|smoke

Technology type

scattered light (Tyndall effect)

Type of measurement

smoke

Number of devices

40 for wireless alarm

Noise level

85 dB at 3 m, minimum

Time delay range

10 min (hush)

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8 cm

Package 1 width

14 cm

Package 1 length

15 cm

Package 1 weight

430 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30 cm

Package 2 width

40 cm

Package 2 length

60 cm

Package 2 weight

12.32 kg

Unit type of package 3

PAL

Number of units in package 3

288

Package 3 height

105 cm

Package 3 width

114 cm

Package 3 length

135 cm

Package 3 weight

162.84 kg

Take-back

Product contributes to saved and avoided emissions

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 150 KB

Frequently Asked Questions

hide show

When should I be testing my Wiser Smoke Alarm?

When installing the Wiser Smoke Alarm testing of the alarm and interconnection should be done after the product is paired to the Hub and also after any RF pairing is completed.
The Wiser Smoke Alarm is recommended to be tested monthly after installation.

Can the Wiser smoke alarm interconnect with my existing alarms?

The Wiser Smoke alarm (CLP599WSAL) has 433MHz RF and Zigbee 3.0 tech included, meaning they are compatible with Clipsal Fire Tek® Wireless smoke alarms 755LPSMA4 and 755RFB2 bases to allow simple upgrade opportunities
