PDL Wiser Smoke detector 230V, IP20, white

Home ProductsSmart HomePDL WiserSmoke detector

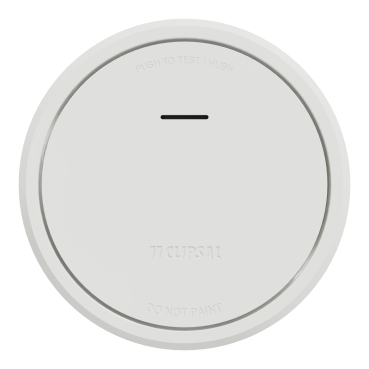

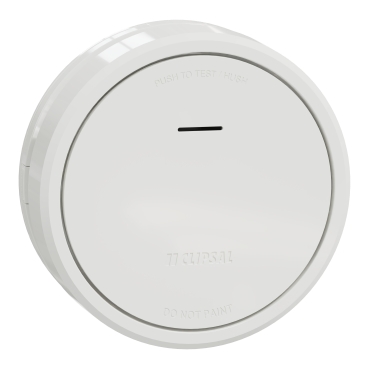

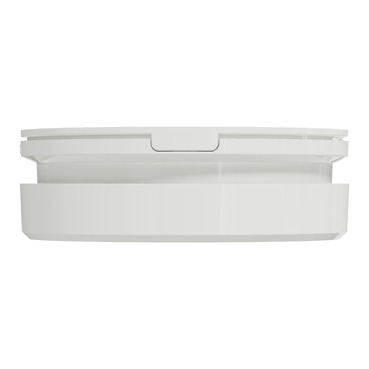

PDL Wiser Smoke detector

Item Number: 755WSA

Where To Buy

Datasheet

PDF datasheet

For 755WSA

Download

Barcode

Qty UoM EAN Colour
1 9311554815196 -
24 19311554815193 -

Specifications

Design

Range of product

Wiser

Range

Wiser

Product brand

Schneider Electric

Product or component type

smoke detector

Device application

early detection of smouldering fires and open fires

Colour tint

white (RAL 9003)

Physical

Type of packing

carton

Supply

mains

Communication network type

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

Function available

local alarm

Control type

button (test/hush function)

Operating distance

50 m indoor

Local signalling

visual: 1 LED (red) for warning and low battery

Connections - terminals

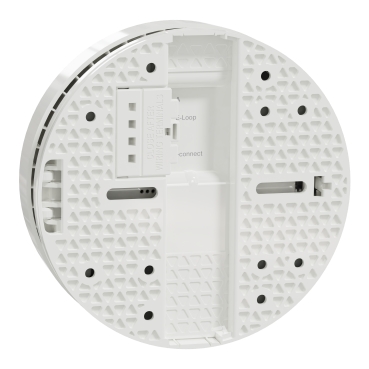

screw terminal (back of the device) - 2 x 1.5 mm²

Type of installation

indoor

Device mounting

surface

Mounting support

ceiling

Fixing mode

by screws

Height

45.9 mm

Ip degree of protection

IP20

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

-20...60 °C

Relative humidity

0...95 %

Product certifications

  • Activfire
  • RCM

Standards

AS 3786

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2108022EN

Circularity profile

ENVEOLI2108022EN

Material

Material

thermoplastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

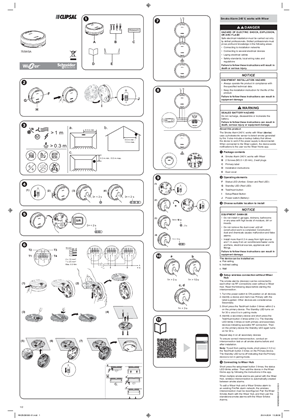

  • Installation Instruction

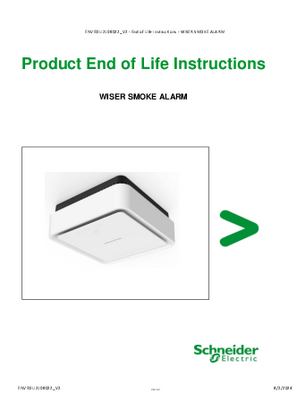

  • End of Life Manual

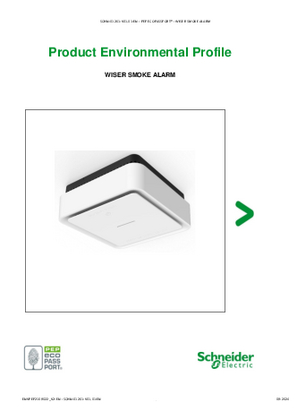

  • Environmental Disclosure

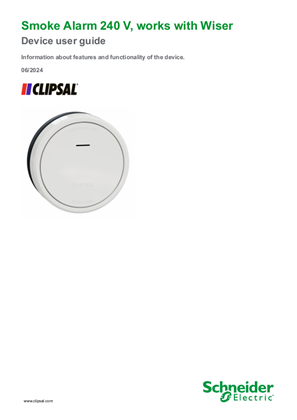

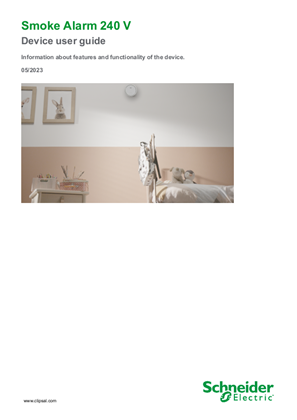

  • Operating Manuals

  • System User Guide

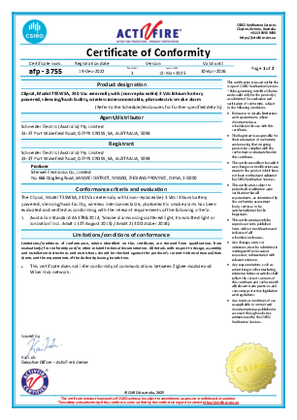

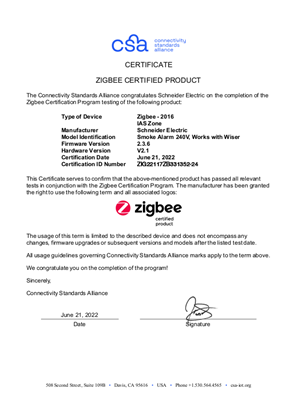

  • Certificates (MSDS)
