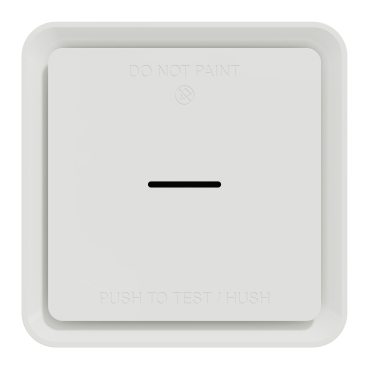

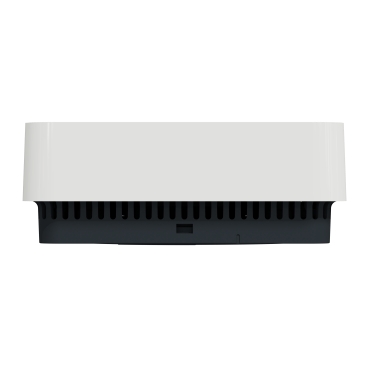

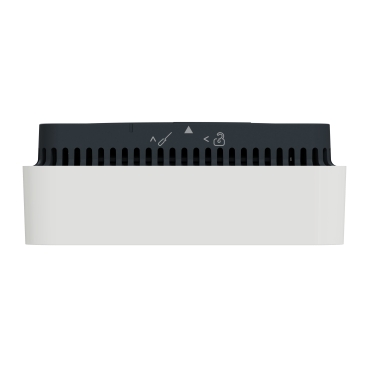

PDL Wiser Lithium Battery Smoke Alarm Surface Mount IP20, White

Item Number: PDL599WSAL

The Wiser Lithium battery powered smoke alarm provides added peace of mind, combining a robust smoke alarm with smart home functions. The Wiser by SE app provides push notification alerts and Automations can trigger lights to come on if smoke is detected. New dual spectrum photoelectric sensing technology helps to mitigate false alarms for added confidence. Powered by a 10-year sealed-in lithium battery avoids the need to replace batteries.

Datasheet

Product Dimensions

Width icon

Width89.5 mm

Height icon

Height33.5 mm

Depth icon

Depth89.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Wiser

Range

Wiser

Product brand

PDL

Product or component type

smoke detector

Device application

early detection of smouldering fires and open fires

Colour tint

white (RAL 9003)

Sustainable offer status

Green Premium product

Physical

Type of packing

carton

Supply

battery

Communication network type

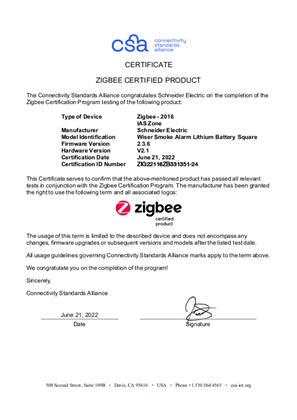

wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m

Function available

local alarm| hush function| self-test of smoke detection

Control type

button (test/hush function)

Operating distance

50 m indoor|40 m indoor

Local signalling

visual: 1 LED (red) for warning and low battery|visual: 1 LED (green) for connection state|sound: signal (green) |sound: alarm

Type of installation

indoor

Device mounting

surface

Mounting support

ceiling|wall-mount

Fixing mode

by screws

Height

33.5 mm

Width

89.5 mm

Depth

89.5 mm

Ip degree of protection

IP20

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

-20...60 °C

Relative humidity

0...95 %

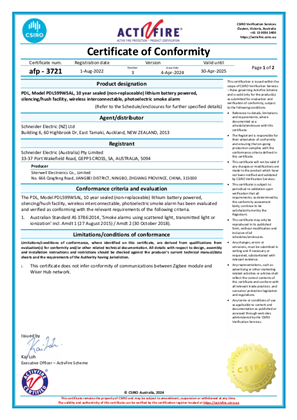

Product certifications

Activfire

Standards

AS 3786

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2108022EN

Circularity profile

ENVEOLI2108022EN

Material

Material

thermoplastic

Others

Package 1 bare product quantity

1

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Electronic sensor type

photo-electric sensor

[us] rated supply voltage

3 V DC

Battery type

lithium 3 V

Battery life

10 year(s)

Detection type

heat|smoke

Technology type

scattered light (Tyndall effect)

Type of measurement

smoke

Number of devices

40 for wireless alarm

Noise level

85 dB at 3 m, minimum

Time delay range

10 min (hush)

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.0 cm

Package 1 width

11.5 cm

Package 1 length

12.5 cm

Package 1 weight

238.0 g

Unit type of package 2

PAL

Number of units in package 2

576

Package 2 height

104.5 cm

Package 2 width

80 cm

Package 2 length

120 cm

Package 2 weight

165.696 kg

Halogen content performance

Halogen free plastic parts product
