C-Bus Relay DIN Rail Mounted Shutter, 240V, AC, 1 Channel, 2A, Without C-Bus Power Supply

C-Bus Relay

Item Number: L5501RBCP

Datasheet

PDF datasheet

For L5501RBCP

Product Dimensions

Width icon

Width36 mm

Height icon

Height93 mm

Depth icon

Depth63 mm

Barcode

Qty UoM EAN Colour
1 9311554667610 -
8 19311554667617 -

Specifications

Design

Range of product

C-Bus

Product brand

Clipsal

Range

C-Bus

Product or component type

relay

Device application

control

Physical

Local signalling

LED

Width

36 mm

Height

93 mm

Depth

63 mm

Ip degree of protection

IP20

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

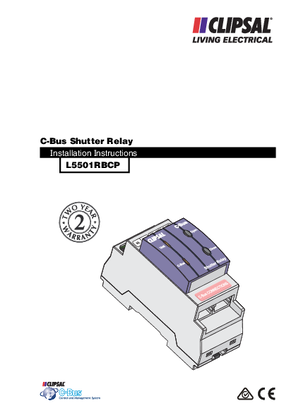

  • Installation Instruction
