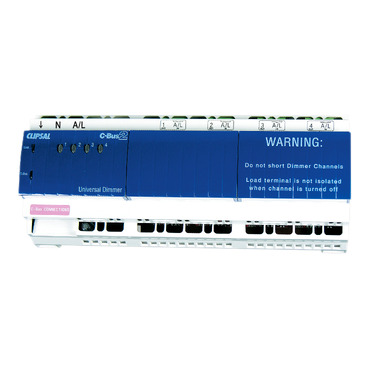

C-Bus Dimmer DIN Rail Mounted Universal, 240V AC, 4 Channel, 2.5A, Without C-Bus Power Supply

Home ProductsSmart HomeC-BusDimmer

C-Bus Dimmer

Item Number: L5504D2UP

Limited Stock

Where To Buy

Datasheet

PDF datasheet

For L5504D2UP

Download

Product Dimensions

Width icon

Width216 mm

Height icon

Height92 mm

Depth icon

Depth63 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9311554649333 -
6 19311554649330 -

Specifications

Design

Range

C-Bus

Product brand

Clipsal

Product or component type

dimmer

Device application

control

Physical

Device presentation

basic element

Load type

  • incandescent
  • halogen lamp
  • low voltage lamp with electronic transformer
  • low voltage lamp with iron-core transformer
  • LED lamp

Dimmer type

  • leading edge
  • trailing edge

Communication network type

C-Bus

Local signalling

LED

Number of channels

4

Connector type

  • RJ45 for C-Bus
  • RJ45 for remote override

Mounting support

DIN rail

Clamping connection capacity

  • 1 x 2.5 mm²
  • 2 x 1.5 mm²

Width

216 mm

Height

92 mm

Depth

63 mm

Net weight

717 g

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Specification Guide

  • Application Notes

  • Declaration of Conformity

  • Software - Release

  • Page 2  /  48
  • Page 3  /  48
  • Page 4  /  48
  • Page 5  /  48
  • Page 6  /  48
  • Page 7  /  48
  • Page 8  /  48
  • Page 9  /  48
  • Page 10  /  48
  • Page 11  /  48
  • Page 12  /  48
  • Page 13  /  48
  • Page 14  /  48
  • Page 15  /  48
  • Page 16  /  48
  • Page 17  /  48
  • Page 18  /  48
  • Page 19  /  48
  • Page 20  /  48
  • Page 21  /  48
  • Page 22  /  48
  • Page 23  /  48
  • Page 24  /  48
  • Page 25  /  48
  • Page 26  /  48
  • Page 27  /  48
  • Page 28  /  48
  • Page 29  /  48
  • Page 30  /  48
  • Page 31  /  48
  • Page 32  /  48
  • Page 33  /  48
  • Page 34  /  48
  • Page 35  /  48
  • Page 36  /  48
  • Page 37  /  48
  • Page 38  /  48
  • Page 39  /  48
  • Page 40  /  48
  • Page 41  /  48
  • Page 42  /  48
  • Page 43  /  48
  • Page 44  /  48
  • Page 45  /  48
  • Page 46  /  48
  • Page 47  /  48
  • Page 48  /  48

Frequently Asked Questions

hide show

Why is there still 240V on the C-Bus dimmer output when it has been switched off from C-Bus?

C-Bus dimmer is controlled by Triac/Mosffet and due to this has a small leakage current.

This small leakage current will impose main voltage out on the dimmer output/load even those the channel is switched off via C-Bus.

We advise that the whole dimmer needs to be switched off before maintenance takes place.





What type of LED's can be used on C-Bus Dimmers?

Firstly you will need to confirm whether your C-Bus system contains C-Bus Leading Edge Dimmers or C-Bus Universal Dimmers, You may need to consult with your EcoXpert in Light and Room Control which one(s) you have if unsure.

The general recommendations for LED compatibility with C-Bus Dimmers is as follows
1) Ensure your LED's have a dedicated LED Driver (electronic transformer) that supports your C-Bus Dimmer type
2) Bench test that the LED Driver is of good quality and works as expected at your site
3) C-Bus Dimmer channels require >25W of load if less is connected to a specific channel that channel will require the addition of a 31LCDA (Load Corrective Device)
4) If the dimming range of the LED fittings is specified by the manufacturer - the installer can programmer the Min/Max settings of the C-Bus Dimming channel to match the LED fittings dimming range.

Note:
C-Bus Leading Edge Dimmers will require LED's which have electronic transformers (LED Driver) which support Leading Edge AC phase control dimming (as noted in the compatible loads section of the installation manual)

C-Bus Universal Dimmers will require LED's which have electronic transformers (LED Driver) which supports Trailing Edge AC phase control dimming (as noted in the compatible loads section of the installation manual).
Although Universal Dimmers can support leading OR trailing edge AC phase control dimming it needs to be exclusively one or the other (NOT BOTH). As such LED Drivers which note LE/TE LED Driver are NOT suitable for the Universal Dimmer.
IMPORTANT: Clipsal by Schneider Electric & Schneider Electric DO NOT make LED's which are compatible with C-Bus NOR can we recommend specific LED Drivers for your C-Bus Dimmer type as LED Dimming and Driver technology is continually changing. The above is a guideline to assist you choose a compatible LED with dedicated LED Driver that supports your dimmer in question. As noted above please have your EcoXpert in Light and Room Control bench test LED Fittings and LED Driver for suitability on your C-Bus Network.
