PDL Sensors Outdoor Sensor
Item Number: PDL100SA360
Motion sensor with passive infrared technology, integrated timer and light level sensor. The device switches lights on upon movement detection for a defined time period depending on the ambient light level. Suitable for outdoor applications. Detection range of 6m radius. Timer range is 5s to 20min. Colour: White Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
For PDL100SA360
Specifications
Design
Range of product
Product or component type
Colour tint
Physical
Load type
- 1000 W incandescent
- 500 W fluorescent
- 600 W 12 V halogen
- 400 W motor
Quantity per set
Type of packing
Rated voltage
Mounting support
- wall
- conduit
- ceiling
Ip degree of protection
Ambient air temperature for operation
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Documents & downloads
hide show-
All
-
Product Brochures
-
Environmental Disclosure
-
End of Life Manual
-
Certificates (MSDS)
Electric Home Design Digital Magazine
VERSION
4.0
DATE
23 Feb 2024
REVISION
4.0
ARGUS - PIR 360° False Ceiling Indoor - Product Environmental Profile
VERSION
3.0
DATE
03 Nov 2023
REVISION
3.0
ARGUS - Argus 360° False Ceiling Indoor PIR - End of life manual
VERSION
3.0
DATE
03 Nov 2023
REVISION
3.0

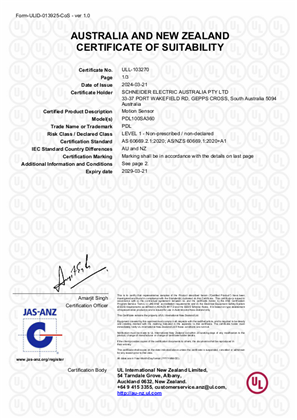

PDL100SA360, Outdoor PIR Sensor, Certificate, RCM, ULNZ LTD
